Product Description

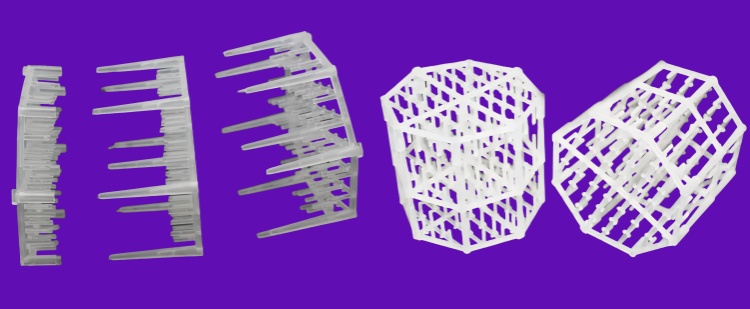

Q-Pac packing media mainly applied in wet scrubbing/air strpping equipment.Its uniformly spaced bar-and-rod design and self-cleaning properties minimize plugging by mineral scale of biological growth. That means less down time for maintenance.Additionally, The Q-Pac tower packing media has natural affinity for oil, and provide high surface area in the form of uniformly spaced rods with no narrow joints that tend to trap sludge particles. Round rods pointing downward allow suspended solid particles to fall from the coalescing media into the sludge compartment for periodic collection.

Higher Gas Velocity, smaller Equipment Q-Pac can be used at higher gas velocities than old-style tower packings. Scrubbers and gas-cooling tower can be designde at well above conventional velocities without sacrificing efficiency. Capital costs can be cut by building smaller-diameter columns, often with smaller pumps and mist elimiators. Low Weight per cubic foot reduces packing costs, especially thermoplastics are needed for heat and corrosion resistance.Q-PAC tower packing's unique drip point technology leads to the most effective masstransfer with lower cost. its widely used in wet scrubbing or air stripping equipment.

Specification:



British Units

Metric Units

Dimensions

3.25″ x 3.75″

206.25px x 237.5px

Void Fraction

96.30%

96.30%

Geometric Surface Area

30 ft2/ft3

98.4 m2/m3

Weight – polypropylene

2.1 lb/ft3

33.7 kg/m3

Weight – PVDF

4.1 lb/ft3

65.8 kg/m3

Number of Pieces

33/ft3

1165/m3

Packing Factor

7/ft

23/m

Number of Dripping Points

11,000/ft3

388,000/m3



Advantages:
1. Smaller Tower Diameters
2. Lower Pressure Drop
3. Smaller Recirculation Pumps
4. Higher Flow Rates in Existing Towers
5. Smaller Mist Eliminators
6. Less Packing Volume
7. Fouling and Plugging Resistant

Lead Time:

Container

1*20GP

1*40GP

1*40HQ

Packed Q”ty

 25m3

 55m3

65m3

Delivery time

 12 working days

 16-18working days

 22 working da


-
