Product Description

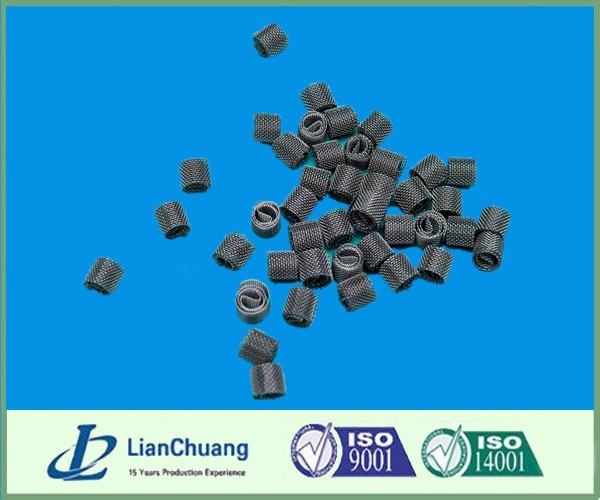

The dixon ring is aslo named as dixon θ packing ring , dixon ring, dixon θ packing rings  are the highly efficient packing of small particles. It’s made of metal mesh with the same diameter and height. θ Dixon ring is used mainly for laboratory and low-volume, high-purity product separation process. Dixon ring packings’ pressure drop is related to gas velocity, liquid spray volume, and material weight, surface tension, viscosity and characteristics of fill factors and pre-fill liquid. ring hysteresis loop filler material than similar entities fill large, θ dixon ring surface wetting situation completely than ordinary ceramic ring, film-forming rate, and thus more efficient. Dixon ring packing with the theoretical plate number of the increase in gas velocity increased, with the filler surface wettability and reduce the rate of decline.

Specification of Dixon Ring :

Spec mm

Net Item

Tower Dia  mm

Theoretical plate pcs/m

Bulk density      Kg/m3

Surface area           m2/m3

φ2×2

100

φ20-35

50-60

670

3500

φ3×3

100

φ20-50

40-50

520

2275

φ4×4

100

φ20-70

30-40

380

1525

φ5×5

100

φ20-100

20-30

295

1180

φ6×6

80

φ20-150

17-20

280

1127

φ7×7

80

φ20-200

14-17

265

1095

φ8×8

80

φ20-250

11-14

235

987

φ9×9

80

φ20-300

8-11

200

976
