Metal Conjugate Ring

Time:
2021-01-11 15:32:24
View:
114

Product Description

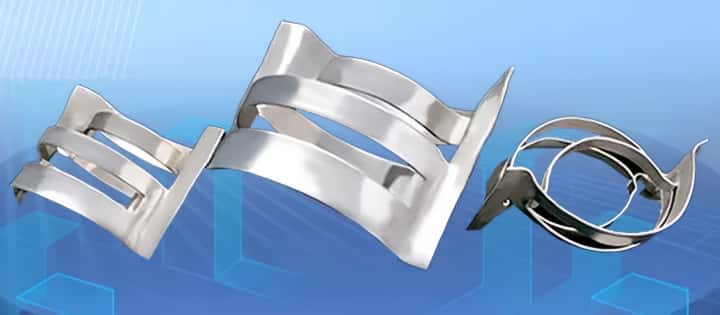

metal conjugate ring is a kind of metal random packing developed from the cascade ring , it combines the advantages of ring and saddles. The structure of Metal Conjugate Packing Ring is conjugate curve, and metal conjugate ring has some features of structured packing for its uniformity holes and low resistance.Metal Conjugate Ring also has proper flanging and diameter ratio, the  Conjugate Ring is point contact between fillings or filling and tower internal wall and has better fluid mechanics and mass transfer property.

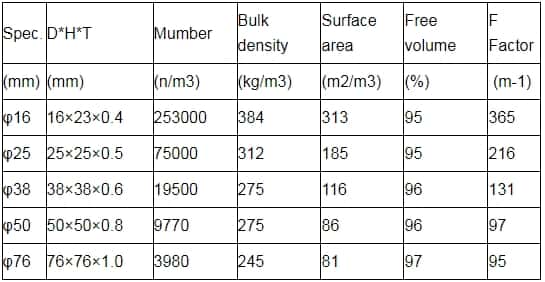

 Technical data:

Spec.

D*H*T

Mumber

Bulk density

Surface area

Free volume

F Factor

(mm)

(mm)

(n/m3)

(kg/m3)

(m2/m3)

(%)

 (m-1)

φ16

16×23×0.4

253000

384

313

95

365

φ25

25×25×0.5

75000

312

185

95

216

φ38

38×38×0.6

19500

275

116

96

131

φ50

50×50×0.8

9770

275

86

96

97

φ76

76×76×1.0

3980

245

81

97

95



Material available:

Metal Conjugate Rings can have a variety of materials, such as carbon steel, stainless steel 304, 304 L, 410, 316, 316 L, etc.



Application:

1.  Ammonia decarbonization
2.  Desulfurization systems
3.  Atmospheric and vacuum distillation of crude oil separation unit. Such as methanol, separation, separation of organic acids uptake and desulfurization towers etc.



Our advantage:

1.More than 10years manufacturing exper experience.
2.ISO9001:2008 certification available.
3.Reasonale price and good service.
4.Free Sample is available, shipping and taxes paid by buyer.

-
