Ceramic balls are an important industrial ceramic material, widely used in various fields such as chemical engineering, grinding, fillers, catalyst carriers, and more. Depending on their use, ceramic balls can be classified into different types, including chemical inert ceramic balls, grinding ceramic balls, and active ceramic balls. Each type of ceramic ball has unique physical properties and chemical characteristics to meet the needs of different industries.
1. Basic Concept of Ceramic Balls
Ceramic balls are spherical ceramic particles made from natural minerals such as kaolin, feldspar, and quartz, which are sintered at high temperatures. Due to their high hardness, excellent wear resistance, and strong chemical stability, ceramic balls have become important components in various industrial equipment and processes, particularly in fields like chemical engineering, mineral processing, and waste gas treatment.

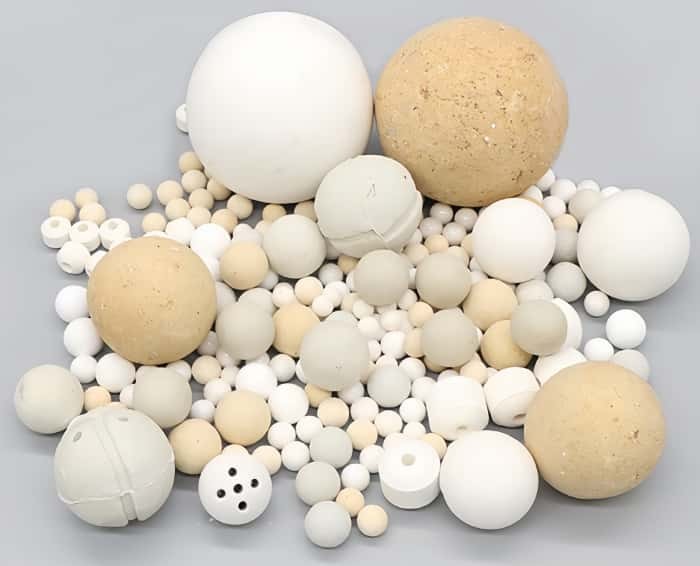

2. Types of Ceramic Balls

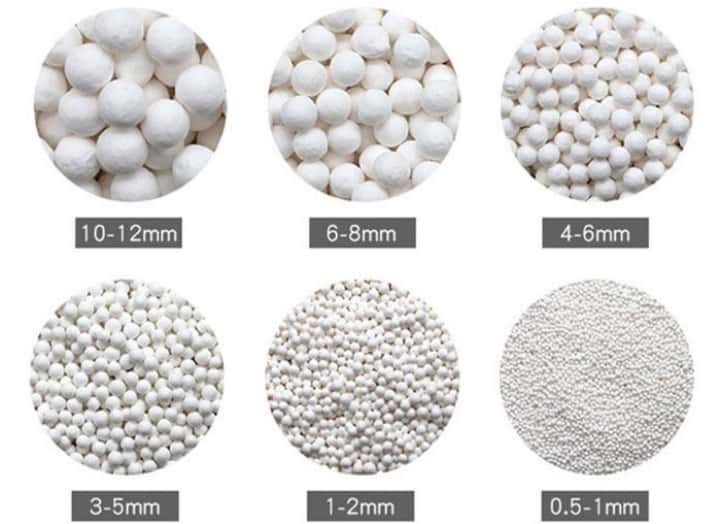

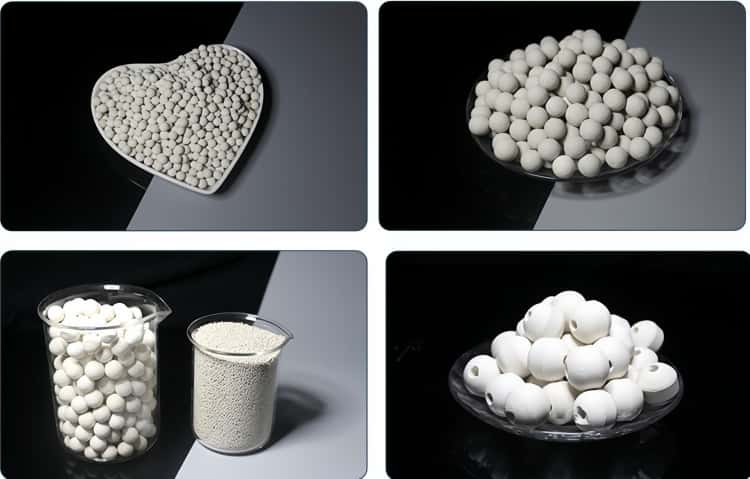

2.1 Inert Ceramic Balls
Inert ceramic balls, also known as filler ceramic balls, are widely used in various industrial applications, including chemical reaction towers, gas absorption towers, and solvent extraction devices. Their main function is to increase the contact area within reactors, thereby enhancing the interaction between gases and liquids, which improves the overall reaction efficiency. Inert ceramic balls are particularly useful in refining and chemical processing industries where maximizing reactor performance is key. Inert ceramic balls include refractory ceramic balls, low alumina or high alumina ceramic balls, porous ceramic ball etc.
Characteristics:
1. High Surface Area: Inert ceramic balls provide a large surface area that offers more sites for reactions to take place. This maximizes the efficiency of the chemical processes in which they are involved, ensuring optimal performance of reactors and other processing equipment.
2. Excellent Corrosion Resistance: These balls are highly resistant to corrosion, even in aggressive and harsh industrial environments, where exposure to strong acids, alkalis, or solvents is frequent. Their durability ensures the stability of chemical processes and helps avoid the need for frequent replacements.
3. Low Pressure Drop Design: Inert ceramic balls are designed with a low pressure drop, which helps reduce energy consumption in reactors and towers. This feature is crucial for maintaining energy efficiency in large-scale industrial processes, as it ensures that the system operates optimally while keeping operational costs low.

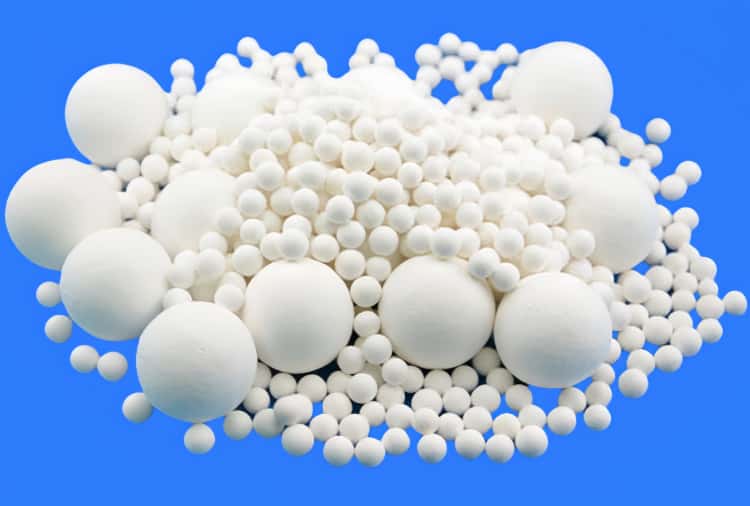

2.2 Grinding Ceramic Balls
Grinding ceramic balls are used predominantly as grinding media in various grinding processes such as in ball mills, where they are employed to crush ores, metal powders, chemicals, and other materials. Due to their superior hardness and smooth surface characteristics, they significantly reduce wear during grinding operations, ensuring high efficiency and performance. These grinding media are essential for industries like mining, metallurgy, ceramics, and chemical manufacturing.
Characteristics:
1. High Hardness: Grinding ceramic balls possess an extraordinary degree of hardness, which reduces their wear over time, ensuring they remain effective over long periods. This property also helps in reducing operational costs as fewer replacements are needed.
2. Excellent Grinding Effect: These balls offer superior grinding performance, providing a consistent particle size distribution and fine grinding, which directly translates to better product quality and improved processing efficiency. The uniformity achieved by these grinding balls is crucial for maintaining high standards in manufacturing processes.
3. Good Chemical Stability: Grinding ceramic balls have excellent chemical stability, meaning they do not react with the materials being ground. This is particularly important in industries that require pure, unadulterated products, as these ceramic balls do not introduce any unwanted contaminants into the materials they come in contact with.

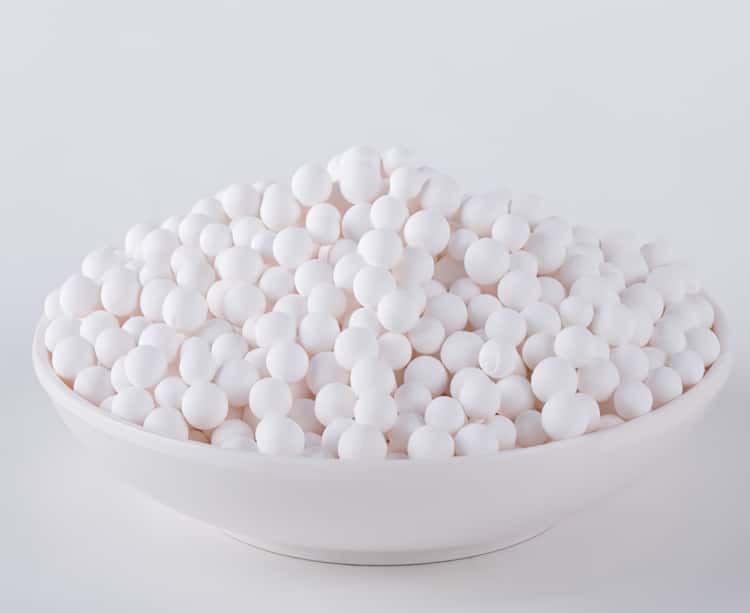

2.3 Active Ceramic Balls
Active ceramic balls have many micro-pathways, which result in a large specific surface area. They can be used as absorbents, desiccants, and catalyst carriers. Active ceramic balls are designed for water absorption, waste gas adsorption, and various purification processes. Due to their highly active surface, they can efficiently adsorb water, oxides, acetic acid, alkalis, and other substances. They also act as trace water desiccants and polar-molecule adsorbents, with a strong attachment force for harmful substances based on the polarization of absorbed molecules. These properties make active ceramic balls widely used in environmental protection applications, such as air and water purification, as well as in resource recovery and waste treatment industries.
Similar to anion exchange resins, active ceramic balls are effective in defluorination, with much stronger selectivity. The defluorination effect is good, and the capacity remains stable. They have high strength, low abrasion, no softening in water, no expansion, no powdering, and no cracking. These characteristics make them suitable for deep drying of cracked gas, ethylene, propylene, hydrogen production, air separation, instrument air drying, and fluorine treatment for hydrogen peroxide. They are also used for absorbing pollution materials, such as H₂S, SO₂, HF, and paraffin in waste gases, particularly in drinking water defluorination.
Characteristics:
- High Surface Activity: The surface of active ceramic balls is highly reactive, enabling them to efficiently adsorb harmful gases, liquids, or solutes. This makes them particularly effective in removing pollutants or hazardous substances from industrial effluents or waste gases.
- Large Specific Surface Area: Active ceramic balls feature a large specific surface area, significantly enhancing their ability to promote reactions between different substances. The increased surface area facilitates better contact between reactants, ensuring higher efficiency in chemical processes.
- Long Service Life: These ceramic balls are designed for long-term use and can be regenerated, making them cost-effective and sustainable. Their ability to be reused multiple times ensures they meet environmental protection standards while also reducing waste and operational costs.
Applications:
- Catalyst for sulfur recovery in the petrochemical industry
- Excellent defluorination agent for drinking water and alkyl-hydrocarbon recycling in alkylbenzene production
- De-acidifying agent for transformer oil and de-arsenic agent in the acid industry
- Adsorbent in hydrogen peroxide solution production
- Catalyst for polyhydro-ammonia production by substituting silica gel with ball-shaped products
- Adsorbent for waste gas treatment, removing harmful gases and particles, especially in drinking water and industrial wastewater defluorination
- Efficient desiccant and purifier for deep drying of cracked gas, ethylene, propylene, hydrogen production, and air separation
3. Manufacturing Process of Ceramic Balls
The manufacturing process of ceramic balls involves a multi-step procedure designed to produce high-quality, durable balls with excellent performance characteristics. This process typically includes raw material selection, formulation, molding, sintering, testing, and packaging. Below is an expanded version of the process:
3.1 Material Selection:
The first step in manufacturing ceramic balls is selecting the appropriate raw materials. High-quality minerals are carefully chosen based on their chemical composition and properties. Some common materials include:
Kaolin: A fine, soft clay mineral that is rich in aluminum and used to provide strength and durability.
Feldspar: A group of rock-forming minerals that are vital for helping the ceramic balls retain their shape during the sintering process.
Quartz: A hard, crystalline mineral that provides structural strength and resistance to wear.
These raw materials are chosen not only for their availability but also for their ability to provide the necessary characteristics such as high hardness, low thermal expansion, and chemical stability in the final product.
3.2 Formulation:
Once the raw materials have been selected, they are mixed according to a precise formulation that ensures the chemical composition of the ceramic balls meets specific standards and requirements. The formulation typically involves mixing the raw materials in the correct proportions to achieve a consistent and homogeneous blend. The mixture may also include additives or binders that help improve the molding process, prevent cracking during firing, and enhance the final properties of the ceramic balls.
Molding:
After the formulation is complete, the raw materials are formed into spherical shapes using either a wet molding or dry pressing method:
Wet Molding: Involves mixing the raw material with water to form a paste-like substance, which is then pressed into spherical molds under controlled pressure. This method is often used to create larger ceramic balls.
Dry Pressing: Involves pressing the dry powder mixture into molds without the addition of water. This method is generally used for producing smaller-sized ceramic balls with higher precision.
The molding process ensures that each ceramic ball has a consistent size, shape, and density, which are critical for their performance in applications such as grinding and chemical processing.
Sintering:
The molded ceramic balls are then subjected to a high-temperature sintering process. This is a key stage that significantly enhances the strength, hardness, and stability of the ceramic balls. The ceramic balls are placed in a furnace and heated to temperatures typically ranging from 1200°C to 1400°C (2200°F to 2552°F). This process causes the particles in the ceramic balls to fuse together, forming a solid, durable structure. The sintering process not only improves the hardness and mechanical strength of the ceramic balls but also increases their resistance to thermal expansion and chemical attack.
The sintering process is carefully controlled to ensure uniform heating and optimal sintering, as any variations in temperature can lead to defects or inconsistencies in the final product.
3.3 Testing and Packaging:
Once the ceramic balls are sintered, they undergo a series of rigorous quality control tests to ensure that their physical and chemical properties meet the required standards. Testing typically includes:
Hardness Testing: To measure the strength and wear resistance of the ceramic balls.
Chemical Composition Analysis: To ensure the correct proportions of raw materials have been used.
Dimensional Accuracy: To verify that the balls meet the required size and shape specifications.
Porosity and Density Testing: To assess the consistency and uniformity of the ceramic balls.
Only those ceramic balls that pass these stringent tests are considered suitable for use. The qualified ceramic balls are then packaged in protective materials to prevent damage during transportation and handling. The packaging process may also involve labeling and sealing to ensure traceability and quality assurance for customers.

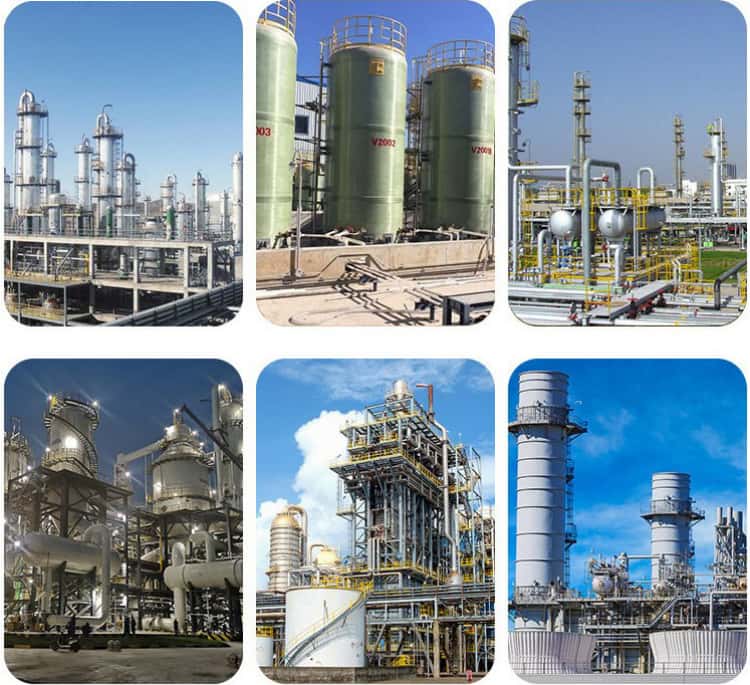

4. Applications of Ceramic Balls
Ceramic balls are widely used in various industries due to their superior performance, durability, and versatility. Below are expanded descriptions of some common applications:
Chemical Industry:
Ceramic balls play a critical role in the chemical industry, particularly in chemical reactors, catalyst beds, and towers. They are used as fillers, catalyst carriers, and reaction media in processes such as petroleum refining, natural gas processing, fertilizer production, and environmental protection. Their high surface area and porosity make them ideal for facilitating chemical reactions and improving the efficiency of catalytic processes. Ceramic balls are also used in distillation columns and absorbers for mass transfer operations, contributing to the effectiveness of industrial processes.
Mineral Processing:
In the mineral processing industry, grinding ceramic balls are used as grinding media in ball mills, which are essential for the efficient processing of ores. The ceramic balls are used to break down ore into smaller particles, improving the grinding efficiency and particle fineness. Their superior hardness, wear resistance, and low contamination characteristics make them ideal for use in environments where traditional steel balls might be prone to wear and corrosion. They are also preferred for their ability to provide higher grinding performance and longer service life in heavy-duty grinding operations.
Water Treatment:
Ceramic balls are utilized in water treatment applications, including wastewater treatment and water purification. Active ceramic balls can adsorb harmful contaminants from water and are used in filtration systems to remove impurities such as heavy metals, chemicals, and bacteria. The balls are also used in biological filtration systems to support the growth of beneficial microorganisms, which help purify water. Their non-toxic and chemically stable nature makes them suitable for treating both drinking water and industrial wastewater, ensuring a cleaner and safer environment.
Environmental Protection:
In the field of environmental protection, ceramic balls are employed in waste gas purification and gas adsorption systems. They are used to filter and remove harmful gases and particulate matter from industrial emissions. Ceramic balls are especially effective in high-temperature environments, where they can withstand extreme conditions while still offering efficient adsorption and filtration properties. Applications include air pollution control systems, scrubbers, and flue gas treatment systems, which help reduce harmful emissions and improve air quality.
Food and Pharmaceutical Industry:
In the food and pharmaceutical industry, ceramic balls are often used in processes that require non-reactive, contamination-free media. They are used as transmission media in systems that transport or mix liquids, powders, or other materials. Ceramic balls are chosen for their ability to remain inert and not react with food or pharmaceutical substances, ensuring the purity and safety of the products. They are also used in milling, mixing, and particle size reduction processes within the food and pharmaceutical manufacturing sectors.
Additional Applications:
Ceramic balls come in various types and characteristics, and each type is designed for specific applications based on its unique properties. These variations in material composition, size, surface area, and porosity allow ceramic balls to excel in diverse industries, offering tailored solutions for different operational requirements. Below is an exploration of how different ceramic balls are used depending on their specific characteristics.
5. Advantages of Ceramic Balls
Ceramic balls offer numerous advantages that make them highly desirable for a wide range of industrial applications:
Strong Wear Resistance:
Ceramic balls have extremely high hardness, which effectively reduces wear and tear in machinery, leading to extended service life for equipment. This makes them ideal for use in high-impact, abrasive environments, such as in ball mills and grinding operations.
Good Chemical Stability:
Ceramic balls exhibit excellent chemical stability, remaining resistant to corrosion and degradation even in harsh chemical environments. This property makes them suitable for use in the chemical industry and other applications where exposure to aggressive chemicals is common.
Strong High-Temperature Resistance:
Ceramic balls can withstand temperatures up to 1400°C (2552°F) without losing their structural integrity. This makes them suitable for use in high-temperature industrial processes, such as in chemical reactors and furnaces.
Energy-Saving and Environmentally Friendly:
Due to their high efficiency and durability, ceramic balls help improve overall production efficiency while reducing energy consumption. Their use in grinding and chemical reactions can lead to less wear on equipment, lower maintenance costs, and a reduced carbon footprint.
Non-Toxic and Safe:
Ceramic balls are non-toxic and do not leach harmful substances into the environment, making them safe for use in applications involving food, water, and pharmaceuticals. They contribute to environmentally friendly processes by reducing contamination risks and supporting sustainable practices.
In summary, the manufacturing process of ceramic balls involves careful material selection, precise formulation, molding, sintering, testing, and packaging to produce high-performance products. Their wide range of applications and numerous advantages make them a crucial component in various industries, from chemical processing to environmental protection.

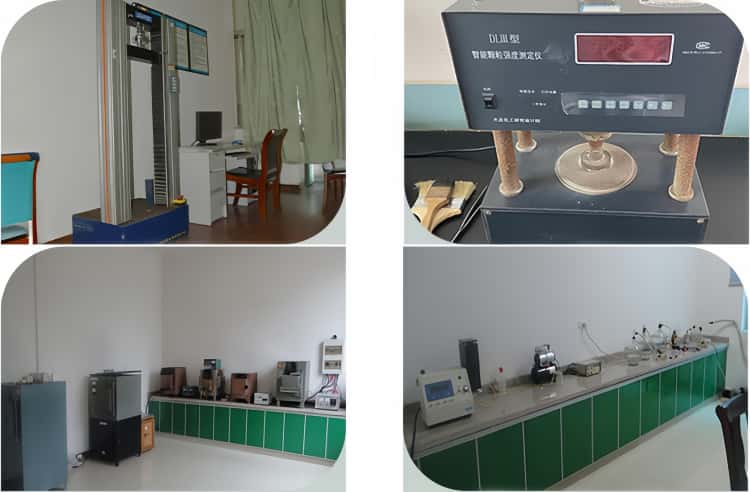

6.Quality Control and Testing Methods for Ceramic Balls
Quality Control Standards
In the production process of ceramic balls, strict quality management standards are crucial to ensure the stability, reliability, and performance of the product. These standards are implemented at various stages of manufacturing, from raw material selection to final product inspection. The primary goal is to ensure that the ceramic balls meet industry requirements for durability, precision, and safety. The quality control process involves thorough monitoring of manufacturing parameters such as temperature, pressure, and timing during sintering, as well as the consistency of material composition. This ensures that the final product is free from defects such as cracks, irregularities, or inconsistencies in size and shape.
To maintain product consistency, manufacturers often use international standards such as ISO 9001, which outlines the quality management principles for production, inspection, and testing. Additionally, the compliance with these standards is regularly verified through audits and inspections, which are critical to maintaining a high level of customer satisfaction and industry reputation.
Common Testing Methods
Hardness Testing
Hardness testing is a key aspect of ceramic ball quality control, ensuring that the material is sufficiently durable and resistant to wear. This is typically conducted using tests like the Vickers or Rockwell hardness test, which measure the material's resistance to indentation. Harder ceramic balls perform better under pressure and are more resistant to abrasion, making them ideal for high-stress applications.
Particle Size Distribution (Granulometry Analysis)
The size of ceramic balls directly affects their performance in various industrial applications. A particle size analysis is conducted to determine the uniformity of the ball's diameter. This can be done using sieve analysis or laser diffraction methods, ensuring that the balls meet the required specifications for consistency and smoothness.
Chemical Composition Testing
The chemical properties of ceramic balls are vital for their performance, especially in specialized industries such as chemical processing or pharmaceuticals. Common testing methods include X-ray fluorescence (XRF) or atomic absorption spectroscopy (AAS), which are used to analyze the elemental composition of the ceramic balls, ensuring that they have the right balance of materials for optimal performance and durability.
Compressive Strength Testing
To test the ceramic ball's ability to withstand extreme pressure, compressive strength tests are carried out. These tests simulate real-world conditions and measure the point at which the ceramic ball begins to deform or fracture. Compressive strength is an important indicator of the ball's suitability for high-load applications, such as in ball mills or other industrial machinery.
7. Usage and Maintenance of Ceramic Balls
Installation and Operation
Ceramic balls are used in a wide range of industries, from grinding and milling to bearings and fluidized beds. The installation method depends largely on the specific application and equipment. For instance, in a ball mill, ceramic balls are carefully placed into the mill chamber, where they will work to break down raw materials through grinding. It is important to ensure that the balls are evenly distributed and properly aligned to avoid damage to the equipment.
In bearing applications, the ceramic balls are installed within the housing and arranged in such a way that they reduce friction and wear between moving parts. It's crucial to check the alignment and spacing to ensure smooth operation. Regular inspection of the ball bearings is necessary to confirm that the ceramic balls are functioning properly and not subjected to excessive stress or deformation.
Maintenance and Care
To maximize the lifespan of ceramic balls, regular maintenance is essential. Here are some key steps to follow:
- Routine Inspections: Periodic inspections should be conducted to assess the condition of ceramic balls, particularly if they are in high-stress applications like grinding mills or bearings. Look for signs of wear, cracks, or other defects. If any balls are found to be damaged, they should be replaced immediately to prevent further damage to the equipment.
- Cleaning: Keeping ceramic balls clean is essential for maintaining their effectiveness. In industrial settings, dust, oil, or other contaminants can build up on the surface of the balls, causing them to perform less efficiently. Regular cleaning can be done using ultrasonic cleaning methods or by washing the balls with a suitable solvent that does not damage their surface integrity.
- Replacements: Depending on usage and wear patterns, ceramic balls may need to be replaced periodically. In grinding applications, the balls may lose their size or become worn down over time. Similarly, in bearings, they may experience surface fatigue. Regularly monitoring the performance of the ceramic balls will help determine when replacement is necessary, reducing the risk of damage to machinery and ensuring optimal performance.
- Proper Storage: When ceramic balls are not in use, they should be stored in a clean, dry, and controlled environment. Exposure to moisture or extreme temperatures can lead to degradation of the material. Ensure that the storage conditions are ideal to maintain the integrity of the ceramic balls until they are ready for use.
By following these maintenance practices, the lifespan of ceramic balls can be significantly extended, ensuring they continue to provide reliable service in various applications.
8. Conclusion
As a versatile and widely used industrial material, ceramic balls play an important role in various industries. With the advancement of technology and the improvement of industrialization, the application fields of ceramic balls continue to expand. Particularly in the chemical, environmental protection, and mineral processing industries, ceramic balls will continue to play an irreplaceable role.
