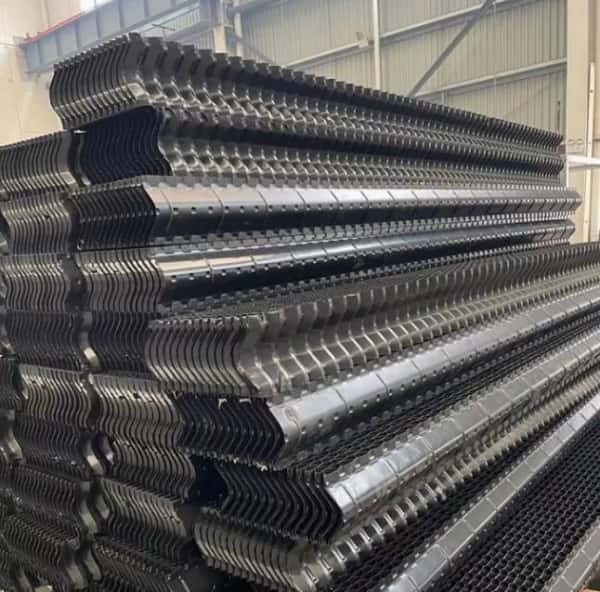

Cooling Tower Demister Drift Mist Eliminator–Efficient Cooling Tower Mist Removal

Cooling towers play a critical role in industrial and commercial operations by facilitating heat exchange and dissipation. However, these towers often produce water mist that can be carried into the surrounding air, negatively impacting air quality and causing environmental pollution. To effectively manage this issue, the Cooling Tower Drift Mist Eliminator has emerged as a vital solution to significantly reduce mist drift, enhance operational efficiency, and ensure compliance with environmental regulations.

Commonly used drift eliminators in cooling towers are the PP (Polypropylene) Drift Mist Eliminator and the PVC (Polyvinyl Chloride) Drift Mist Eliminator. Both materials offer unique advantages based on their characteristics, performance, and suitability for specific applications. Below is a detailed comparison:

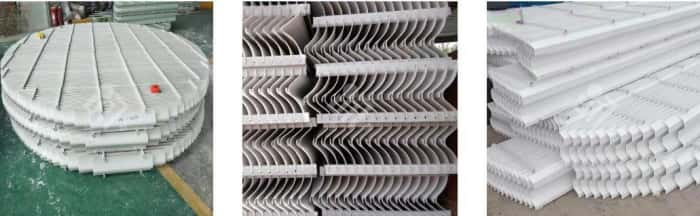

PP Demister (Polypropylene Mist Eliminator)

• Corrosion Resistance: PP material boasts exceptional resistance to chemical corrosion, making it highly durable against most acids, bases, and salts.
• High Temperature Resistance: PP Demisters maintain excellent performance in environments with temperatures up to 150°C (302°F).
• Mechanical Strength: PP offers good mechanical strength and hardness, coupled with excellent elasticity.
• Lightweight: With a density of 0.90-0.91 g/cm³, PP is one of the lightest materials in the plastic category.
• Long Service Life: Due to its excellent anti-aging properties, PP is suitable for use in outdoor or harsh environments.

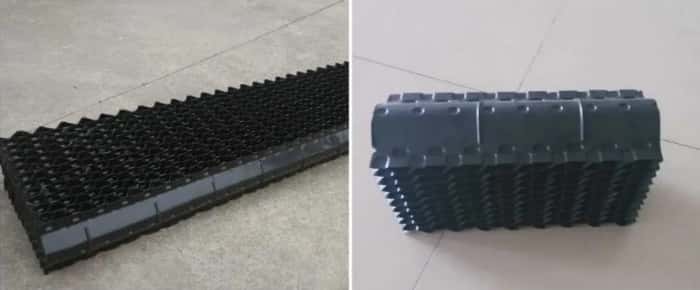

PVC Demister (Polyvinyl Chloride Mist Eliminator)

• Chemical Corrosion Resistance: PVC provides good resistance to most acids, bases, and salts, but its tolerance to certain organic solvents is relatively lower.
• Temperature Resistance: PVC can withstand temperatures in the range of 60°C-80°C (140°F-176°F), making it more suitable for lower temperature applications.
• Mechanical Performance: While PVC offers solid mechanical performance, its strength and elasticity are not as high as PP.
• Heavier Weight: PVC has a higher density (1.35-1.45 g/cm³) compared to PP.

When to Choose PP vs. PVC:

• For high-temperature environments (over 80°C), PP Demisters are recommended.
• For applications with high chemical corrosion resistance needs and moderate temperatures (up to 80°C), PVC Demisters provide an effective solution.
• For applications where weight is a key factor, PP’s lighter weight makes it the preferable choice.

In summary, both PP and PVC drift eliminators offer distinct benefits, and the selection should be made based on specific environmental conditions and operational requirements.

The Cooling Tower Demister Drift Mist Eliminator operates on efficient physical principles to capture and remove water mist from the cooling tower exhaust air. This prevents droplets from escaping into the surrounding environment, helping to maintain air quality and enhance the tower's efficiency. The core operational principles are:

Mist Capture

The cooling tower’s exhaust air typically carries many fine water droplets that can be suspended by air currents. The mist eliminator utilizes strategically designed grids, fiber media, or filler materials. As the mist-laden air passes through, droplets are trapped on the surface of these grids or fibers.

Mist Recovery

Once captured, the droplets flow along the surface of the filter media and are directed to the cooling tower’s water collection basin or other recovery systems. This process prevents mist from drifting, ensuring that water resources within the cooling tower are used effectively.

Unobstructed Airflow

The design of the mist eliminator ensures a smooth passage for airflow, capturing mist without significantly impeding air movement. This helps to maintain the cooling tower’s optimal heat dissipation capacity.

Automatic Drainage & Simple Maintenance

The mist eliminator is designed to ensure captured droplets flow efficiently into recovery systems, reducing water accumulation. Additionally, maintenance is made easy with periodic cleaning and inspection procedures, ensuring long-term operation.

• Effective Mist Capture: Using advanced mist capture technology, the Cooling Tower Drift Mist Eliminator achieves over 90% efficiency in removing fine mist from cooling tower exhaust. Even under high wind speeds and extreme weather conditions, it ensures minimal mist discharge.
• Corrosion-Resistant Construction: Made from corrosion-resistant, high-temperature resistant materials like PVC and PP, these eliminators are built to withstand the harshest environmental conditions without damage from chemicals or corrosive elements.
• Improved Air Quality: By removing water mist, the eliminator reduces moisture escaping into the surrounding environment, which in turn improves air quality and helps prevent issues such as excessive moisture and air pollution.
• Enhanced Cooling Efficiency: Reducing mist drift optimizes airflow within the cooling tower, improving heat dissipation and reducing energy consumption. This boosts the overall efficiency of the cooling process.
• Environmental Compliance: The mist eliminator plays a key role in complying with environmental regulations by reducing mist drift, minimizing pollution, and conserving water resources. This is increasingly important as environmental regulations continue to tighten globally.
• Easy Installation & Maintenance: The mist eliminator’s design facilitates straightforward installation. It can be customized based on the cooling tower’s design and operational needs. The system requires minimal maintenance, which typically involves regular cleaning and inspection to ensure its continued efficiency.

The Cooling Tower Demister Drift Mist Eliminator is widely used in various industries that rely on cooling towers for temperature control and heat dissipation, including:

• Chemical & Pharmaceutical Industries: Cooling towers in these plants often discharge large amounts of heat. The mist eliminator helps prevent mist drift and potential chemical contamination.
• Power Industry: In power plants, controlling mist drift prevents water wastage and reduces environmental impact, enhancing cooling efficiency.
• Industrial Cooling Systems: Most industrial facilities use cooling towers for temperature regulation. Installing a mist eliminator improves efficiency and minimizes the environmental impact.
• Air Conditioning & Refrigeration: Large cooling systems used in air conditioning and refrigeration benefit from mist eliminators by reducing mist drift and improving comfort in the working environment.

We offer a wide range of models for the Cooling Tower Demister Drift Mist Eliminator to accommodate various cooling tower designs, operational conditions, and discharge standards. Our team can assist in customizing the product to meet your specific needs.

Additionally, we provide comprehensive technical support and after-sales services, ensuring the equipment operates efficiently throughout its lifecycle. This includes installation assistance, system commissioning, routine maintenance, and technical consultations to ensure optimal performance.

The Cooling Tower Demister Drift Mist Eliminator is an essential device for effectively reducing mist drift from cooling towers, improving cooling efficiency, enhancing air quality, and complying with environmental regulations. Whether in chemical, power, or air conditioning industries, or any other industrial cooling systems, this device reduces water waste and boosts cooling performance. With our expertise in product customization and technical support, we ensure that you receive the most suitable solution tailored to your operational needs.

For any inquiries or additional requirements, feel free to reach out to us. We are dedicated to providing professional advice and superior service.
