Ceramic honeycomb materials are gaining significant traction in various industrial applications due to their unique structure, which provides remarkable mechanical, thermal, and chemical properties.This article offers a detailed exploration of ceramic honeycombs, covering their definition, types, manufacturing processes, key applications.
1. Introduction
Ceramic honeycomb materials are gaining significant traction in various industrial applications due to their unique structure, which provides remarkable mechanical, thermal, and chemical properties. These materials are widely used in energy, aerospace, automotive, and environmental protection industries, thanks to their strength, lightweight nature, heat resistance, and ability to handle extreme conditions. The honeycomb structure, which maximizes surface area while minimizing weight, makes these materials exceptionally efficient for numerous applications, including heat exchange, catalysis, and filtration.
As the demand for sustainable solutions grows, the role of ceramic honeycombs in reducing energy consumption, improving heat transfer efficiency, and lowering emissions continues to expand. This article delves into their properties, types, manufacturing techniques, and wide-ranging applications.
2. Overview of Ceramic Honeycombs

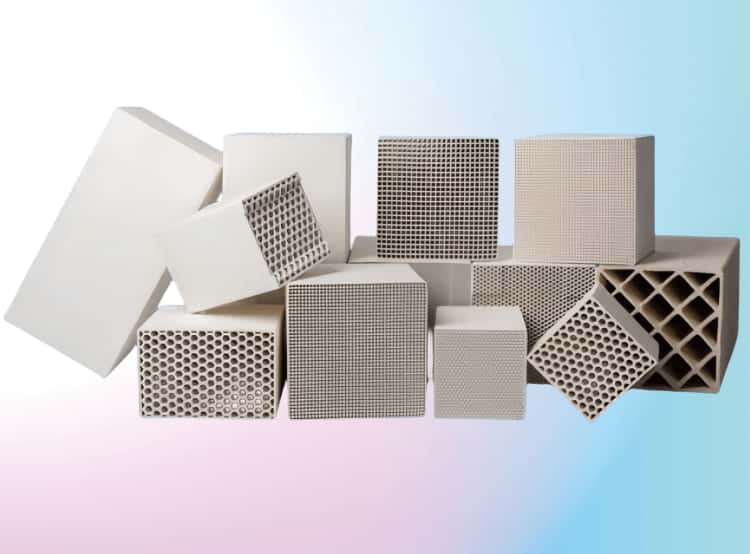

Ceramic honeycombs consist of a network of interconnected hexagonal cells, resembling a honeycomb pattern, which provides a combination of structural strength, low weight, and high surface area. These materials are typically produced from high-temperature-resistant ceramics, including alumina, silica-alumina, and zirconia, among others.
The primary characteristics that make ceramic honeycombs highly desirable are:
- Lightweight with High Strength: The honeycomb structure allows for a lightweight material that maintains a high level of mechanical strength. This is particularly important for industries like aerospace, where weight reduction is critical without sacrificing structural integrity.
- Excellent Heat Resistance: Ceramic honeycombs can withstand temperatures of up to 1500°C, which makes them suitable for use in extreme heat environments, such as combustion chambers and exhaust systems.
- Large Surface Area: The unique porous structure greatly increases the surface area of the material, making it ideal for catalytic reactions, heat exchange, and filtration processes.
- Chemical Stability: Ceramic honeycombs offer outstanding resistance to chemical attack, including exposure to acids, bases, and molten metals, making them valuable in industrial processes involving corrosive substances.
2.1 Product Definition
Ceramic honeycomb consists of multiple hexagonal cells that are arranged in a continuous structure. These cells are typically made from high-temperature resistant ceramic materials, such as alumina, silica-alumina, and zirconia. The honeycomb structure provides a significant surface area, improving the material's performance in gas exchange, catalytic reactions, and heat conduction.

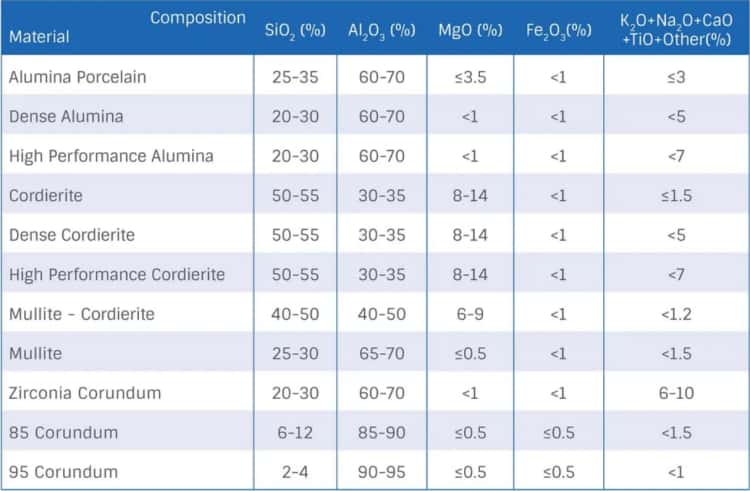

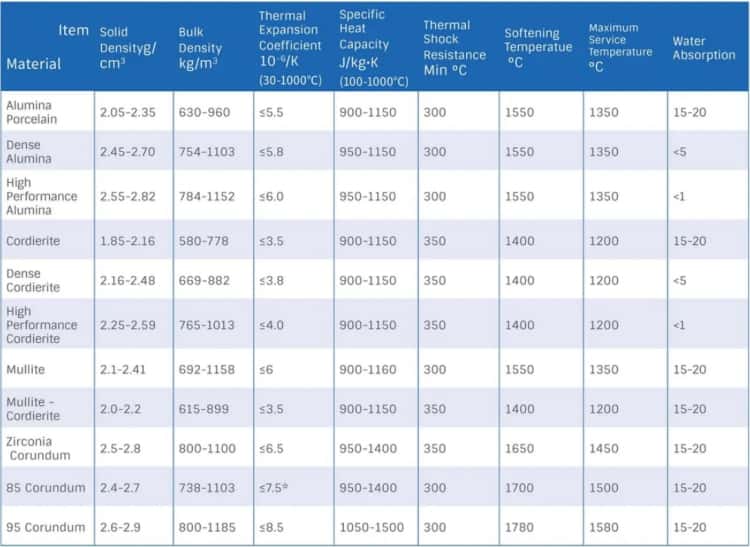

2.2 Typical Materials
Alumina Ceramics
Alumina is the most commonly used advanced ceramic material due to its strong ionic inter-atomic bonding. It provides excellent chemical and thermal stability, good strength, and both thermal and electrical insulation properties at a reasonable cost. With a range of purities and relatively low production costs, alumina is widely used across various industries.
Mullite Ceramics
Mullite forms only at high-temperature, low-pressure conditions and is typically supplied synthetically. Known for its low thermal expansion, excellent creep resistance, and stability under harsh chemical conditions, mullite is a strong candidate for advanced ceramics, particularly in industrial processes requiring high-temperature strength and stability.
Dense Alumina & Dense Cordierite
- Low water absorption (0-5%)
- High density and high heat capacity
- Large specific surface area, improving thermal efficiency
- Strong resistance to acids, silica, and salts, with low block rate
Silicon Carbide Ceramics
Silicon carbide is valued for its extreme hardness, high melting point, and excellent thermal conductivity. It retains its strength at temperatures up to 1400°C and is well-known for its wear and thermal shock resistance. Silicon carbide is widely used in industries for catalyst supports and filters in hot gas or molten metal applications due to its low thermal expansion coefficient and strong mechanical and chemical stability in high-temperature environments.
Cordierite Ceramics
Cordierite offers superior thermal shock resistance thanks to its low coefficient of thermal expansion (CET). It also has high refractoriness and chemical stability, making it ideal for high-temperature industrial applications, such as heat exchangers for gas turbines and honeycomb catalyst carriers in automotive exhaust systems.
Zirconia Oxide Ceramics
Zirconia is known for its high strength and toughness, especially when enhanced with additives such as magnesium oxide (MgO), yttrium oxide (Y2O3), or calcium oxide (CaO). These additives control phase transformation and improve wear and corrosion resistance, making zirconia ideal for applications requiring wear tolerance and resistance to damage in extreme conditions.
Corundum Ceramics
- High purity: Al2O3 > 99%, excellent chemical resistance
- Temperature resistance: Long-term use at 1600°C, short-term at 1800°C
- Thermal shock resistance and good resistance to cracking
- Slip casting, high density, and high-purity alumina
- Other High-Temperature Ceramic Materials
- Materials such as molybdenum, tungsten, and other metal oxides are used for applications in extreme temperature conditions.
- Metallurgy: For use in furnaces and other high-temperature applications.
- Power Generation: Used in gas turbines and fuel cells to improve energy efficiency.
- Electronics: Ceramic honeycombs are used in heat sinks and thermal management devices for electronic components, ensuring temperature control in sensitive equipment.
- Ceramic honeycombs can withstand temperatures up to 1500°C, making them suitable for high-temperature applications like exhaust systems and combustion chambers.
- Their lightweight yet strong structure is ideal for industries like aerospace and automotive, where reducing weight without sacrificing strength is crucial.
- The large surface area of their honeycomb design enhances catalytic reactions and heat exchange, improving efficiency in processes such as exhaust gas purification and chemical reactions.
- Ceramic honeycombs have excellent chemical stability and resistance to corrosion, making them valuable in harsh environments, such as chemical processing and environmental protection.
- Despite their benefits, ceramic honeycombs are brittle and can break under impact or vibration, limiting their use in environments with high mechanical stress.
- The production process for ceramic honeycombs is complex, involving precise control and specialized materials, which leads to high manufacturing costs.
- These factors make ceramic honeycombs less accessible for wide-scale use in cost-sensitive industries.
- The manufacturing process requires specialized equipment and expertise, which can limit production efficiency and increase time-to-market.

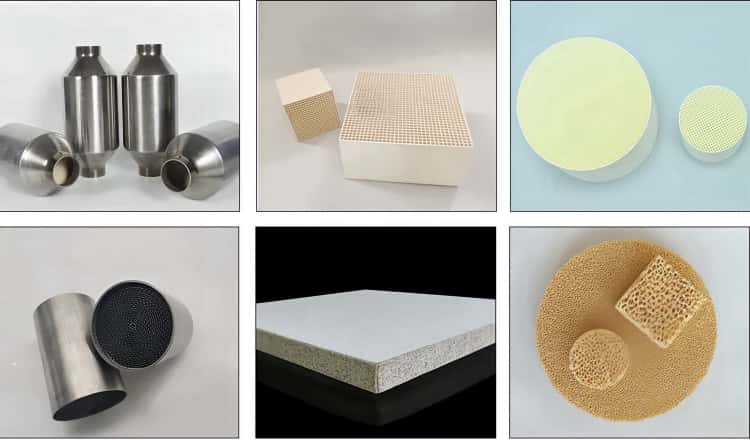

3. Types of Ceramic Honeycombs
Ceramic honeycombs are categorized based on materials, pore structure, and application requirements. Below are the main types:
1. Alumina Ceramic Honeycomb: Ideal for high-temperature applications requiring thermal stability and oxidation resistance.
2. Silica-Alumina Ceramic Honeycomb: Used for acid-alkali resistance and high-temperature applications.
3. Zirconia Ceramic Honeycomb: Known for thermal shock resistance and ability to withstand rapid temperature changes.
4. Molybdenum Ceramic Honeycomb: Used in extreme environments due to its excellent oxidation and corrosion resistance.
5. Synthetic Ceramic Honeycomb: Made from high-performance ceramics, offering higher uniformity and strength.

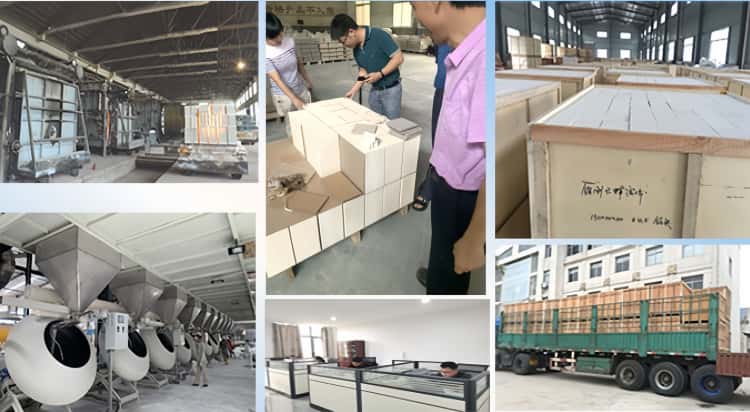

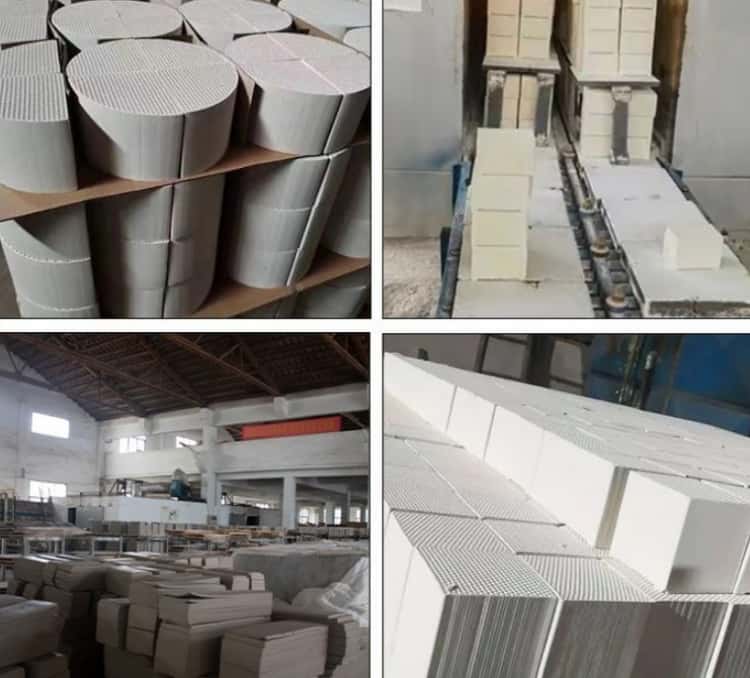

4. Manufacturing Process of Ceramic Honeycombs
The production of ceramic honeycombs involves several key steps to ensure the material’s durability, mechanical strength, and precision. These structures are used in various industries, including automotive, aerospace, and chemical processing. The key stages are as follows:
1. Raw Material Preparation
The production begins with selecting high-purity raw materials like alumina, silica, and zirconia, known for their heat resistance and mechanical strength. These materials are mixed with binders, plasticizers, and other additives to enhance processability and ensure a uniform blend. The mixture is then homogenized to ensure consistency in texture and composition, which is crucial for the final product's performance.
2. Forming Process
The honeycomb structure is formed using either extrusion or molding. In extrusion, the material is forced through a die to create a continuous, uniform structure. This method is ideal for producing large quantities with precise cell structures. In molding, the material is pressed into pre-designed molds, allowing for more complex shapes but typically at a slower rate.
3. Drying Process
After shaping, the ceramic undergoes a drying process to eliminate moisture. This is a critical step, as any residual moisture could cause cracks during firing. Drying is usually performed in controlled environments, using either convection or vacuum drying methods. The goal is to remove moisture gradually to prevent uneven shrinkage and warping.
4. Firing Process
The dried honeycomb is then subjected to high temperatures in a kiln, typically between 1200°C and 1600°C, depending on the material’s composition. This sintering process fuses the particles together and enhances the ceramic's strength, thermal stability, and resistance to wear. The firing also burns off any organic binders used in the forming process, leaving behind a pure ceramic structure. The firing parameters, including time and temperature, are carefully controlled to optimize the material’s properties.
5. Cooling and Cutting
After firing, the honeycomb must cool slowly to avoid thermal shock, which could cause cracking. This cooling process is carefully controlled, often using fans or cooling chambers. Once cooled, the honeycomb is cut to the required dimensions using precision tools like diamond saws or abrasive cutting wheels.
6. Post-Processing
After cutting, additional treatments may be applied to enhance the ceramic honeycomb’s properties. These may include surface coatings to improve resistance to corrosion, strengthening treatments to enhance mechanical durability, or thermal shock resistance testing. Advanced techniques like plasma spraying or chemical vapor deposition (CVD) may be used for specialized coatings, especially for applications requiring high performance in extreme conditions.
5. Applications of Ceramic Honeycombs
Ceramic honeycombs are widely used in various industries due to their excellent thermal stability, mechanical strength, and resistance to high temperatures and corrosion. Some of the key applications include:
1. Automotive Industry

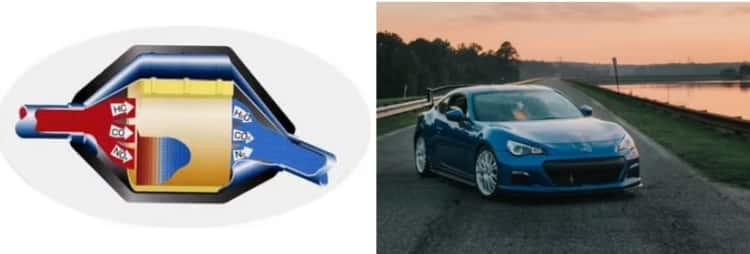

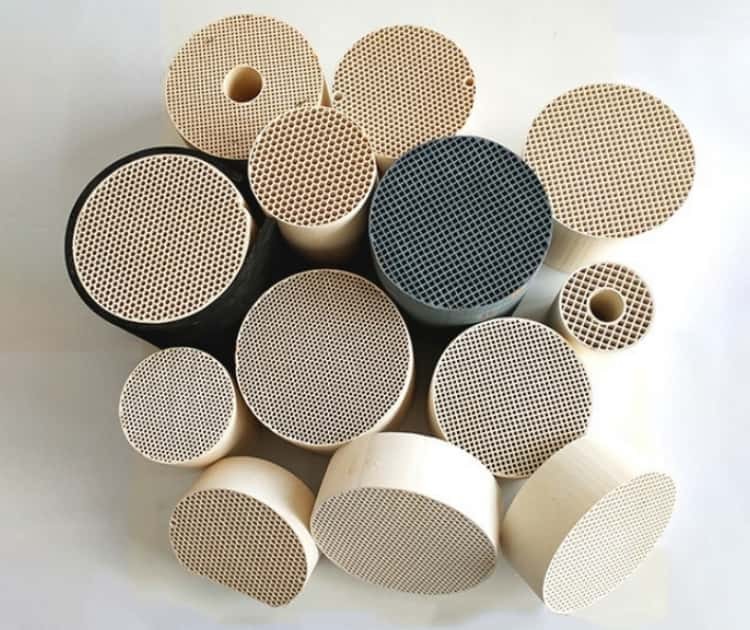

In the automotive sector, ceramic honeycombs are widely used as catalyst supports in exhaust gas purification systems, especially in catalytic converters. Catalytic Converter Ceramic Honeycomb high surface area and porous structure provide an ideal substrate for catalytic reactions, helping to reduce harmful emissions such as nitrogen oxides (NOx), carbon monoxide (CO), and hydrocarbons (HC). The catalytic converter ceramic honeycomb design allows for the efficient flow of exhaust gases while supporting a high concentration of catalyst materials.
2. Chemical Engineering & Catalytic Reactions
Ceramic honeycombs play a significant role in petroleum refining and various chemical reactions. They serve as carriers for catalysts in processes like hydrocracking, alkylation, and oxidation. The high surface area of the honeycomb structure allows for efficient reaction rates and better catalyst longevity. These honeycombs are also used in reactors where gas-phase reactions take place, enhancing reaction efficiency and optimizing the use of catalysts.
3. Heat Exchangers

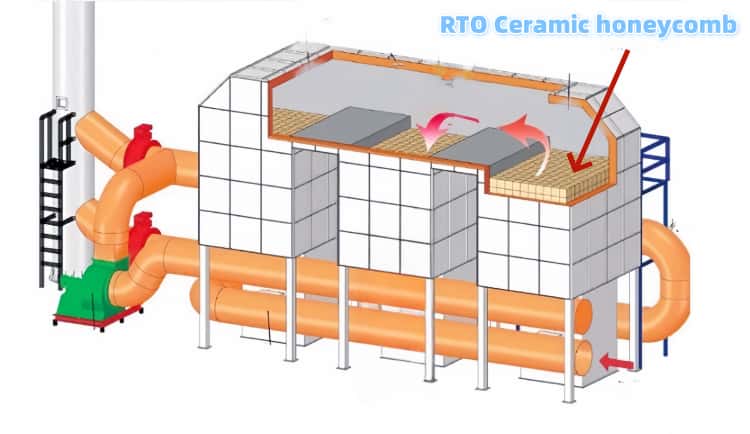

RTO Ceramic honeycombs are commonly employed in industrial heat exchangers, particularly in systems designed for gas-liquid heat transfer. Their unique structure promotes efficient heat transfer between gases and liquids by maximizing the surface area for heat exchange. In applications where high temperatures and aggressive fluids are involved, ceramic honeycombs provide durability and excellent thermal resistance, ensuring long-lasting performance.
4. Environmental Protection
Ceramic honeycombs are crucial components in exhaust gas treatment and air purification systems. Their use in technologies such as SCR (Selective Catalytic Reduction) and NOx abatement systems helps reduce pollutants in industrial emissions. By serving as a support for catalytic materials, they facilitate the conversion of harmful gases into less toxic compounds. These honeycombs are also found in air filters and water treatment systems, contributing to improved air quality and environmental protection.
5. Other Industrial Applications
Beyond the aforementioned industries, ceramic honeycombs are also utilized in various other sectors:
6. Advantages and Challenges of Ceramic Honeycombs
Advantages
Challenges
7. Conclusion
Ceramic honeycombs represent a breakthrough in advanced material science, offering a combination of high strength, thermal resistance, and excellent catalytic properties. These unique materials have found widespread applications across multiple industries, including automotive, aerospace, chemical engineering, and environmental protection. The versatility of ceramic honeycombs, along with their ability to operate under extreme conditions, makes them indispensable for modern industrial processes that require efficiency, durability, and high performance.
While there are challenges in terms of material brittleness and production costs, ongoing advancements in manufacturing techniques and material science hold promise for enhancing the properties of ceramic honeycombs. In the future, we can expect ceramic honeycombs to play an even more critical role in emerging industries, especially in the fields of renewable energy and smart manufacturing, contributing to the development of sustainable and innovative technologies
