Ceramic random packing plays a critical role in industrial processes such as gas absorption, distillation, and chemical reactors. It significantly enhances mass transfer efficiency, especially in the interactions between different phases (gas, liquid, or solid). Ceramic random packing is commonly used to fill towers, providing a large surface area for phase interaction while minimizing flow resistance. This unique combination of properties makes ceramic random packing an essential material in various industries, including petrochemicals, environmental engineering, and pharmaceuticals. The production of ceramic random packing involves several stages, including raw material selection, mixing, molding, sintering, and final quality testing. Each stage requires precise control to ensure the final product meets the necessary mechanical, thermal, and chemical properties.
This article will detail the key steps involved in the production process of ceramic random packing.
1. Raw Material Selection
The production of ceramic random packing begins with the selection of raw materials. The choice of raw materials directly affects the final product’s properties, such as mechanical strength, thermal stability, and corrosion resistance. Common raw materials for ceramic packing include bauxite (Al₂O₃), silica (SiO₂), kaolin, and other clay minerals.
Key Raw Material Properties:
- Bauxite (Al₂O₃): Known for its excellent thermal stability and chemical resistance, bauxite is ideal for use in environments exposed to high temperatures and corrosive conditions.
- Silica (SiO₂): Offers good mechanical strength and heat resistance but is more chemically reactive than bauxite. It is often blended with other materials to enhance performance.
- Clay and Kaolin: These materials serve as binders, ensuring structural integrity by helping ceramic particles adhere together during molding and sintering.
When selecting raw materials, the proportions of these ingredients are adjusted based on the specific requirements for the ceramic packing. For example, bauxite is typically used for high-temperature, corrosion-resistant applications, while silica is preferred for environments requiring good mechanical strength at moderate temperatures.
2. Preparation of the Raw Material Mixture
After the raw materials have been selected, they must be ground into fine powders. This step is crucial because the consistency of the powder directly influences the molding process and, in turn, the mechanical properties of the ceramic packing.
Preparation steps include:

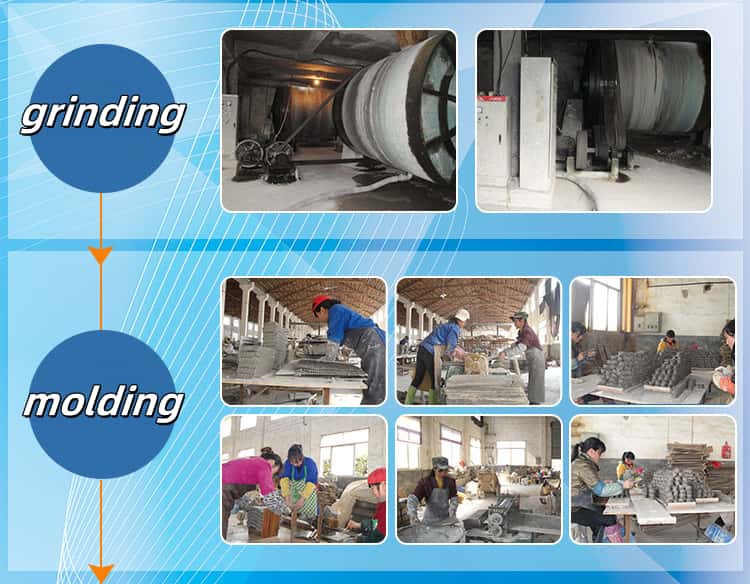

- Grinding: Raw materials are ground into fine powders using ball mills or other grinding equipment. The finer the powder, the larger the surface area, which aids in better mixing.
- Mixing: The powdered raw materials are mixed with specific additives, such as binders, plasticizers, and catalysts, which assist in molding and enhance the final product’s performance.
- Moisture Control: During this stage, the moisture content of the mixture must be carefully controlled to ensure it is suitable for molding. If the mixture is too wet, it may crack during drying; if it is too dry, it may not mold properly.
After mixing, the raw material blend must be thoroughly homogenized to ensure uniform porosity and strength in the final product. This consistency is vital to the performance of ceramic packing.
3. Molding and Shaping

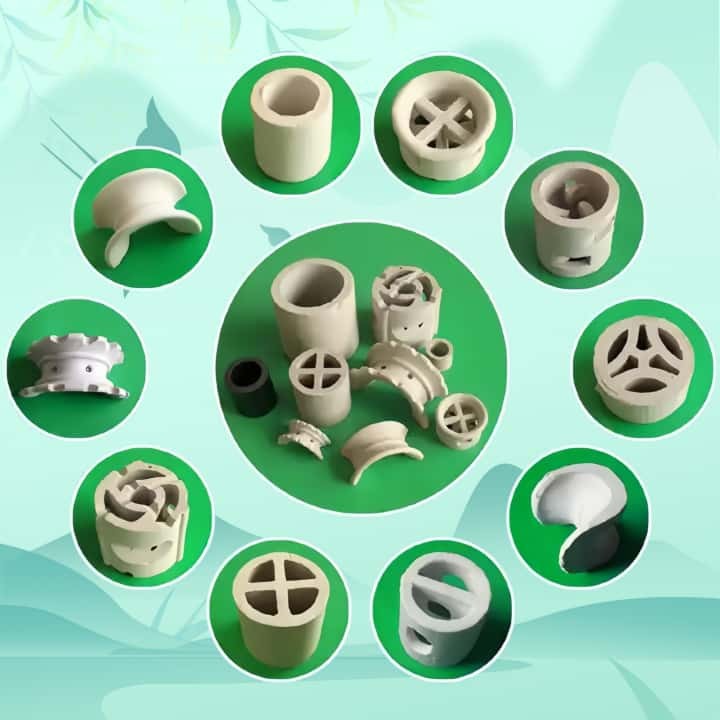

Once the mixture is ready, it must be molded into the desired shapes. The design of the packing is essential because it directly impacts the surface area and mass transfer efficiency within the packed column. Common shapes for ceramic random packing include rings, saddles, and spheres, although custom shapes can be created based on specific application needs.
Common molding methods include:
- Extrusion Molding: The prepared mixture is forced through a mold (die) to form uniform shapes, such as rings, saddles, or spheres. Extrusion ensures the consistency of the shapes and sizes of the packing.
- Compression Molding: The material is placed into a mold and subjected to high pressure. This method is often used for more complex or smaller shapes.
- Casting: In some cases, the mixture is poured into molds and allowed to harden. Casting is typically used for larger or more intricate shapes.
The choice of molding method depends on the type of ceramic material used and the specific requirements of the industrial application. The precision of the molding process directly affects the packing’s performance, as shape, surface texture, and size all influence mass transfer efficiency.

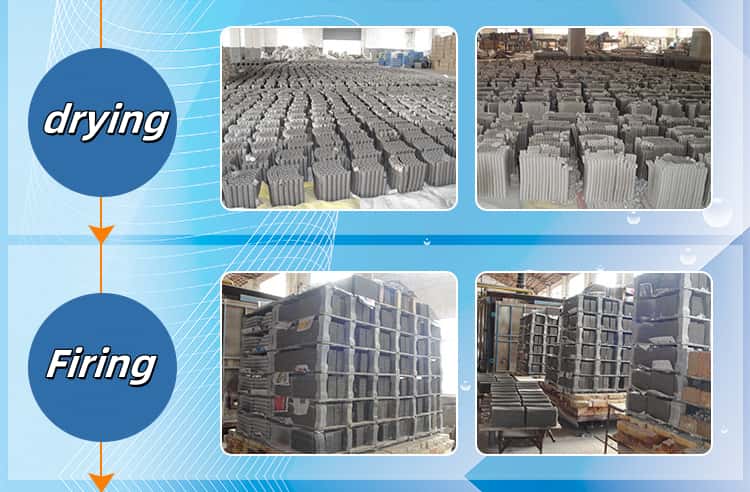

4. Drying Process
After molding, the ceramic pieces need to be carefully dried to remove excess moisture. Drying is a critical step in the ceramic production process because incomplete moisture removal can lead to cracks or deformation during sintering. Proper drying ensures the stability and performance of the final product.
There are two common drying methods:
- Sun Drying: When weather conditions permit, ceramic pieces can be naturally dried under the sun. This method is energy-efficient and suitable for low-humidity environments but requires precautions to prevent rapid evaporation, which could cause cracking. Typically, materials are covered with cloth or placed under shaded conditions to ensure a slow, even drying process.
- Drying Oven: When sun drying is not feasible, ceramic pieces are placed in specialized drying ovens where temperature and humidity are tightly controlled. The drying process in these ovens is typically done in two stages:
- Pre-drying: This step is conducted at lower temperatures (around 100°C) to remove free water from the surface of the ceramic.
- Final Drying: This stage is conducted at slightly higher temperatures (up to 120°C) to ensure all remaining moisture is evaporated, preparing the ceramic for sintering.
The drying process must be gradual and uniform to prevent thermal shock. Rapid drying may cause uneven shrinkage, leading to cracks or defects, which can affect the quality of the final product.
5. Sintering and Firing
Sintering is the most critical step in the production of ceramic random packing. During this stage, ceramic pieces are fired at high temperatures (usually between 1000°C and 1400°C). The purpose of sintering is to fuse the ceramic particles together, creating a strong, durable structure. Sintering also enhances the ceramic’s mechanical strength, thermal stability, and resistance to corrosion.
Several important changes occur during the sintering process:
- Burning off Binders: Organic binders or plasticizers used during molding are burned off during sintering, leaving behind a pure ceramic structure.
- Grain Growth: The ceramic particles bond together, reducing porosity and increasing the material’s strength.
- Final Shrinkage: Ceramic pieces shrink slightly during sintering, which helps improve the precision of the packing shape.
Sintering is the most energy-intensive step in the production process but is also the most crucial, as it determines the final properties of the ceramic random packing, such as density, porosity, and mechanical strength.
6. Quality Control and Testing
Once sintering is complete, the ceramic random packing undergoes strict quality control testing to ensure it meets the required specifications. Quality control typically includes the following aspects:
- Mechanical Strength: The ceramic packing must withstand the mechanical stresses encountered in industrial processes without cracking or deforming. Compression and bending strength tests are commonly conducted.
- Porosity and Surface Area: The porosity of the packing directly impacts its efficiency in mass transfer processes. Higher porosity provides a larger surface area for interaction between phases. Surface area is typically measured using the BET (Brunauer-Emmett-Teller) method.
- Thermal Stability: The ceramic packing must maintain structural integrity at high temperatures without degrading or breaking. Thermal shock resistance is also tested.
- Chemical Resistance: Depending on the application, the ceramic packing may undergo tests for chemical resistance to ensure it will not degrade in harsh chemical environments.

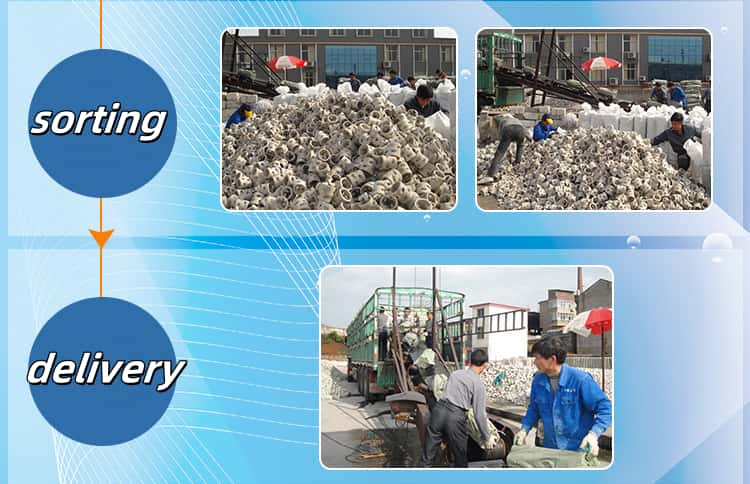

7. Packaging and Distribution
Once the ceramic random packing passes quality control tests, it is carefully packaged for distribution. Packaging is crucial to prevent damage during transport and to protect the ceramic from contamination or moisture, which could degrade the product’s quality.

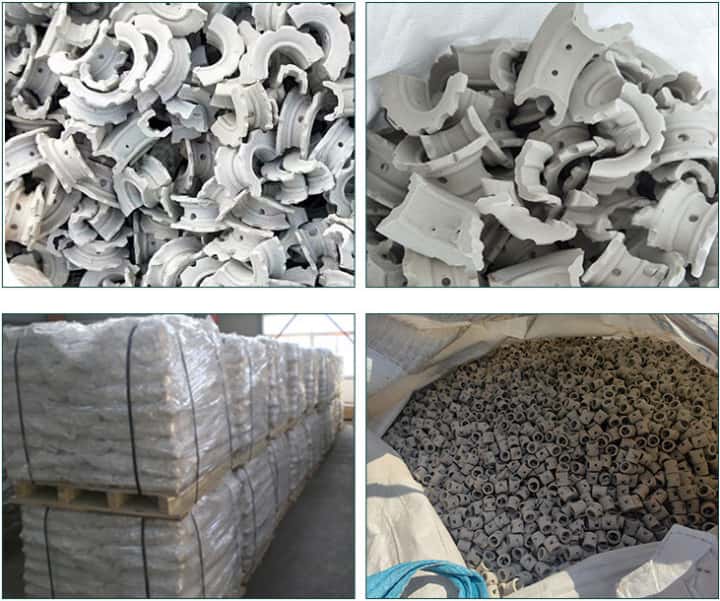

Common packaging methods include bulk bags, cardboard boxes, or custom containers, depending on the size and shape of the packing. The packaging must be designed to ensure that the product remains intact, free from contaminants, and protected from environmental factors such as humidity.
Conclusion
The production of ceramic random packing is a complex and highly controlled process that requires attention to detail at every stage, from raw material selection to final testing. The properties of the ceramic material—such as mechanical strength, porosity, thermal stability, and chemical resistance—are all influenced by the choices made during the production process. Ceramic random packing is indispensable for a wide range of industrial applications, and its performance directly impacts the efficiency of mass transfer processes in packed columns and reactors. As industrial needs continue to evolve, the production of ceramic random packing must adapt to meet these challenges, ensuring that the final product provides reliable and effective performance in demanding environments.
