Product Description
Cooling tower film fill, like the MX75, enhances cooling efficiency, allowing your existing splash-fill cooling tower to produce colder water without increasing fan power. Alternatively, you can leverage this improved efficiency to save on horsepower while maintaining the same cold water temperature.

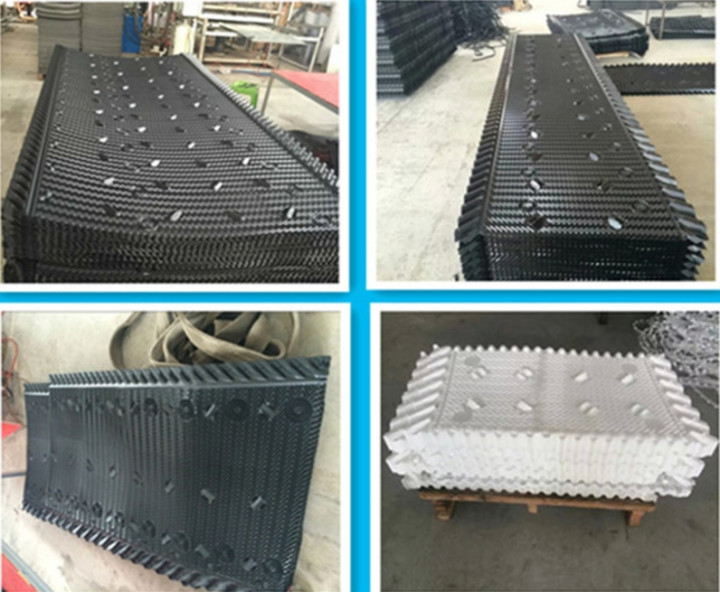

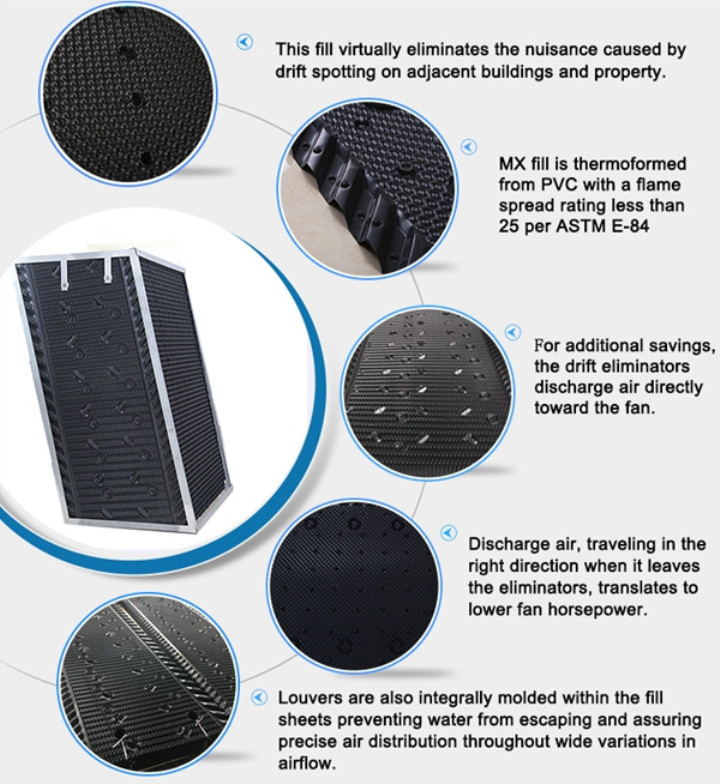

Marley MX75 pvc crossflow flim cooling tower fill features highly efficient cellular drift eliminators molded directly into the fill sheets. These advanced eliminators drastically reduce drift emissions by a factor of ten or more compared to older designs, lowering your water and chemical treatment costs and virtually eliminating drift spotting on nearby structures. Additionally, the drift eliminators direct air towards the fan, resulting in further fan power savings.
The fill sheets also have integrally molded louvers, which prevent water from escaping and ensure even air distribution across various airflow rates. Unlike towers with separate external louvers, MX75 fill remains almost ice-free even in extremely cold conditions.
MX75 is thermoformed from PVC with a flame spread rating less than 25 per ASTM E-84 and is considered self-extinguishing. Therefore, your risk of fire damage is minimal. MX75 film fill complies with Cooling Technology Institute (CTI) Standard 136. You’ll enjoy long service life with minimal maintenance because MX75 fill won’t rot, is impervious to corrosion and decay, and its wide sheet spacing prevents clogging. Since MX75 has integral louvers and drift eliminators, extra support framing and retainers are not required. MX75 fill is available in air travels from 18" to 60" and can be installed in almost all crossflow cooling towers regardless of a cooling tower’s age or manufacturer.
Reasons For Using Marley MX75 PVC fill
Using Marley fill can improve thermal performance by lowering the cold water temperature by up to 17%. Only OEM Marley MX75 fill guarantees thermal performance equivalent to original design specifications. OEM Marley MX75 is the only way to maintain your FM approval and CTI Certification. It is thermoformed from PVC with a flame spread rating of less than 25 per ASTM E-84, making it nearly self-extinguishing and minimizing the risk of fire damage. MX75 fill is resistant to rot, corrosion, and decay, and its wide sheet spacing prevents clogging. MX75 minimizes the drift rate, thereby saving water and eliminating the risk of water damage to nearby property.
How is it installed?

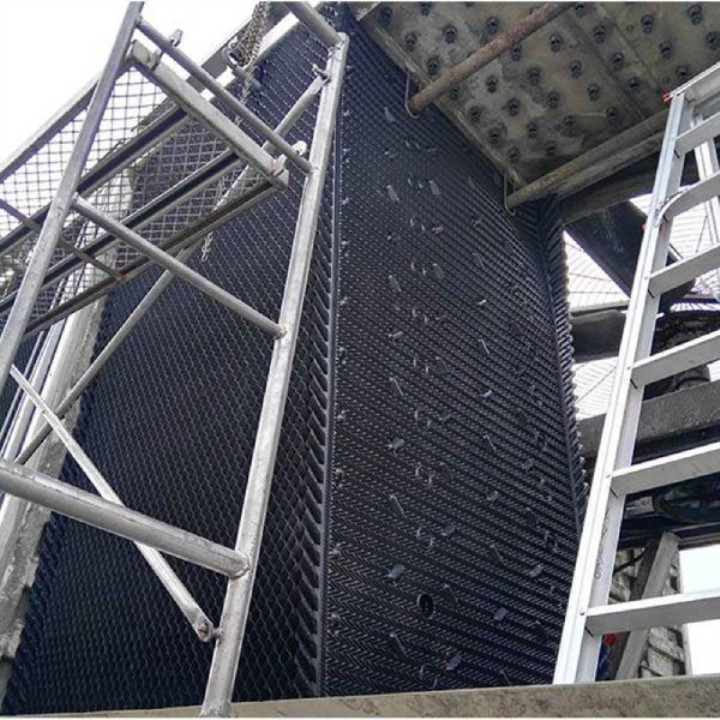

The fill is typically suspended from structural tubing supported by the upper structure of the cooling tower. It is elevated at least 2 inches above the floor of the cold water basin to facilitate cleaning. Because the MX75 has integral louvers and drift eliminators, additional support framing and retainers are not necessary.
Q & A:
1. How can I get a quote?
Contact our service team with your specific requirements for fill sizes and quantities, and they will provide you with a detailed quotation.
2. How can I determine how many pieces of fill I need?
One simple method is to count the fill pieces in the cooling tower. Alternatively, you can measure the area that the fill occupies within the cooling tower.
3. Can I get samples for testing?
Yes, please reach out to our service team to request free samples for testing.
