Product Description

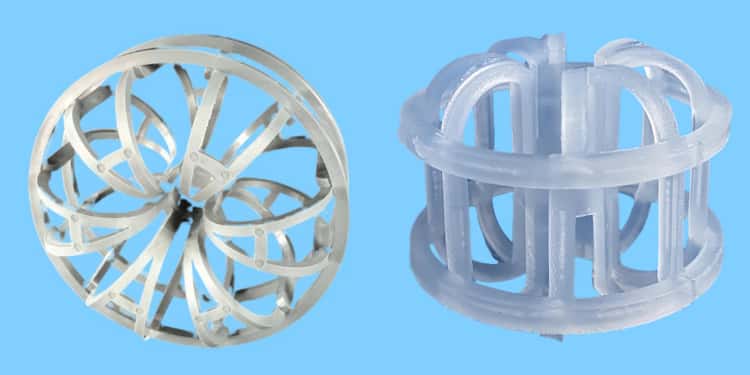

The Plastic Bilayer Rosette Ring, also known as Double-layer Tellerette Packing, is an innovative plastic packing material featuring two layers of circular rings with a stiffener in the center. This unique structure significantly enhances the compressive strength of the packing bed, making it highly effective in various applications. In addition to its high energy efficiency and low-pressure drop, the special design also allows for a higher liquid holding capacity within the packing, which results in longer residence times for the liquid in the column. This prolonged interaction between the gas and liquid phases increases the contact time, improving mass transfer efficiency.
Physical and Chemical Properties
| Material | Density (g/cm³) | Operating Temp. (°C) | Chemical Corrosion Resistance | Compression Strength (MPa) |
|---|---|---|---|---|
| PE | 0.94-0.96 | 90 | Good | >6.0 |
| PP | 0.89-0.91 | >100 | Good | >6.5 |
| RPP | 0.93-0.94 | >120 | Good | >7.0 |
| PVC | 1.32-1.44 | >60 | Good | >6.0 |
| CPVC | 1.50-1.54 | >90 | Good | >8.0 |
| PVDF | 1.75-1.78 | >150 | Good | >10.0 |
Dimensions and Packing Properties
| D*H*T (mm) | Specific Surface (m²/m³) | Void Volume (%) | Bulk Quantity (pcs/m³) | Packing Factor (m⁻¹) |
|---|---|---|---|---|
| 30*20*2.8 | 182 | 92 | 49,800 | 194 |
| 50*37*3.8 | 168 | 92 | 9,650 | 192 |
| 73*50*4.3 | 123 | 90 | 2,380 | 158 |
| 95*70*5 | 95 | 90 | 1,410 | 146 |
*Additional customized sizes are available upon request.
Key Features
The Plastic Bilayer Rosette Rings offer several key features:
High void ratio, Low pressure drop, Low mass-transfer unit height, High flooding point, Uniform gas-liquid contact, Small specific gravity, High efficiency of mass transfer.
Advantages
The Plastic Bilayer Rosette Rings provide the following advantages:
1. The unique double-layer structure offers high flux, low pressure drop, and strong anti-impaction capability.
2. Exceptional resistance to chemical corrosion.
3. Large void space for better liquid holding capacity.
4. Energy-saving with low operating costs and easy to load and unload.
Applications
The Plastic Bilayer Rosette Rings are ideal for various applications, including:
Gas absorption, Acidic gas deabsorption systems, Washing processes, Fertilizer production. These packings are widely used in industries like petroleum, chemicals, alkali chloride, gas processing, and environmental protection, with operating temperatures up to 280°C.
For further information, orders, or inquiries, please don't hesitate to contact us.
