Product Description

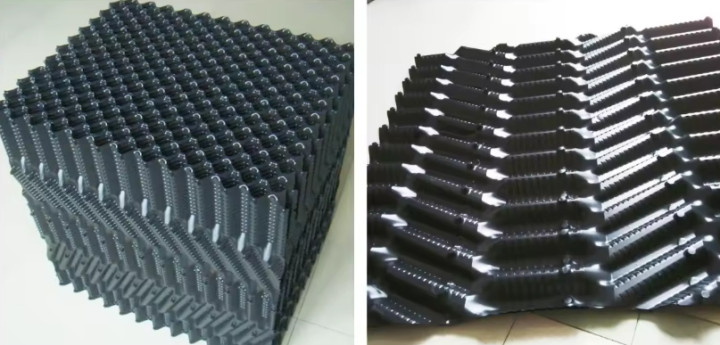

offset fluted fills are also called cooling tower vertical offset fills, which combine low-fouling property of vertical flow with the enhanced water distribution of cross fluted designs. The offset fluted counterflow film fill modules are solvent welded design for maximum strength and pack integrity. The media is used for various application where water quality is average, such as power, steel, food processing, chemical, etc.

Offset-fluted fills utilize the water dispersion feature of cross-fluted fills, while the majority of the water film travels in a vertical path, like vertical-fluted fills. This keeps the water-film velocity high and reduces fouling potential. By combining these characteristics, offset-fluted fills are able to achieve high thermal performance and low pressure drop.

Features:

High thermal performance.
Low fouling potential.
Bonded edge with dedicated bond points for added durability.
Proprietary edge-cutting technology produces square packs that efficiently direct water to both sides of sheet.
Resistant to UV, corrosion, organic/inorganic acids, alkali and chemicals that normally found in the cooling tower waters.
Most versatile fill for use in varying water qualities while maintaining high performance.
Available in PVC, HPVC, and Polypropylene

Offset Fluted Cooling Tower Fills Benefits:


Most versatile fill for use in varying water qualities while maintaining high performance.
Engineered to provide the performance of a cross-fluted product with the fouling resistance of vertical-fluted media.
Ideal for existing vertical-fluted thermal upgrades.

Offset Fluted Film Fills Specification:


Material: PP, PVC, HPVC.
Surface area: 147.8 m2/m3.
Sheet spacing: 20.8 mm.
Media pack size:
Depth: 300-600 mm.
Width: 127-458 mm.
Length: 305-3050 mm.

Offset Fluted Cooling Tower Fills Application:


Offset-fluted fills are utilized in counter-flow cooling towers within power plants, chemical facilities, food processing plants, and refineries where water contains a moderate level of total suspended solids.

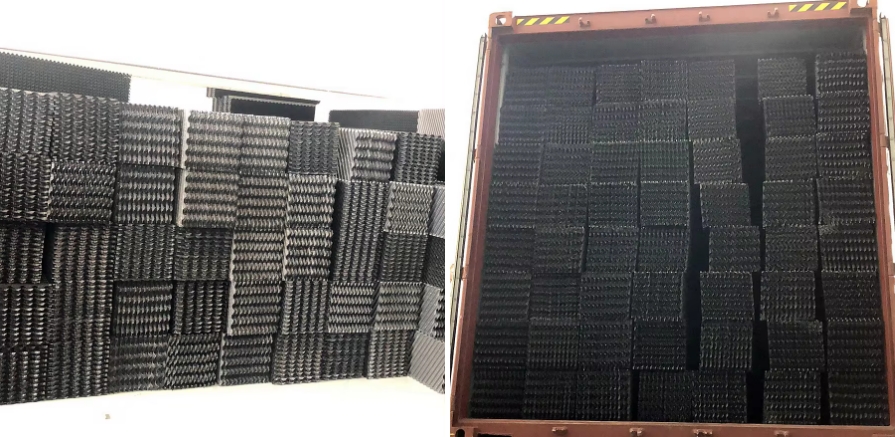

Pacakges:
