Product Description

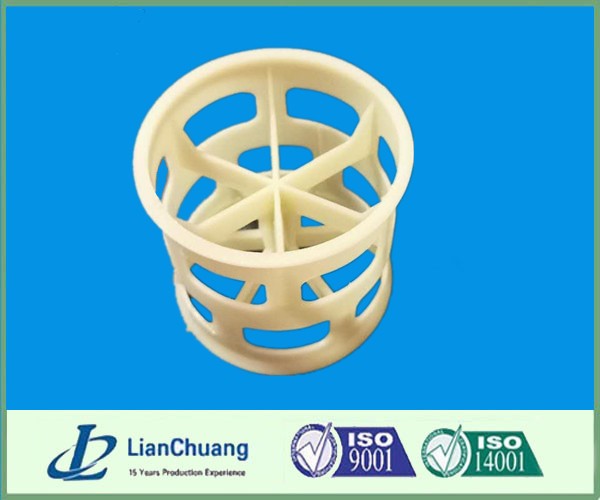

Plastic Ralu Rings are improved of plastic pall ring, it has more favorable pressure drop valuesand lower expenditure of material as compared to pall rings. Plastic raru ring also has higher capacity and better efficiency. Because of Raru Ring’s high flooding point, uniform gas-liquid contact it can be widely used in device of reducing pressure, separation and absorption process, isolation of ethylbenzene, toluene, trimethylpentane etc.
Features of Ralu Ring:
High void ratio
Low pressure drop
Short mass-transfer unit height
High flooding point
Uniform gas-liquid contact
Low specific gravity
High mass transfer efficiency
Plastic Ralu RingAdvantages:
The unique structure allows for high flux, low pressure drop, and excellent anti-impaction properties.
Strong resistance to chemical corrosion, large void spaces, energy efficiency, low operational costs, and easy loading and unloading.
Applications: These various plastic tower packings are extensively used in industries such as petroleum, chemicals, alkali chloride, gas processing, and environmental protection, with a maximum temperature tolerance of 280°C.
Technical Date Plastic Ralu Rings’s
Size | Weight | Number | Surface | Free Vol |
mm | kg/m3 | pcs/m3 | m2/m3 | % |
15 | 80 | 170000 | 320 | 94 |
25 | 56 | 36000 | 190 | 94 |
38 | 65 | 13500 | 150 | 95 |
50 | 60 | 6300 | 110 | 95 |
90 | 40 | 1000 | 75 | 90 |
125 | 30 | 800 | 60 | 97 |
Properties of Plastic Material:
Material | PE | PP | RPP | PVC | CPVC | PVDF |
Density g/cm3 | 0.94-0.96 | 0.89-0.9 | 0.92-0.9 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 |
Using Temperature °C | ≤90 | ≤100 | ≤120 | ≤60 | ≤90 | ≤150 |
Chemical Corrosion Resistance % | Anti-corosion | |||||
Tensile Strength N/mm2 | >6.0 | >6.0 | >7.0 | >6.0 | >8.0 | >10.0 |
Our advantage:
1.More than 10years manufacturing exper experience.
2.ISO9001:2008 certification available.
3.Reasonale price and good service.
4.Free Sample is available, shipping and taxes paid by buyer.
