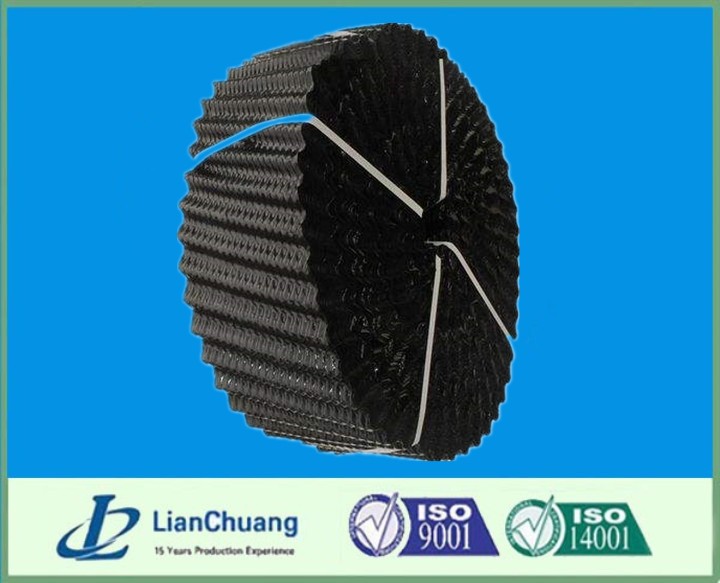

Round Cooling Tower Fill

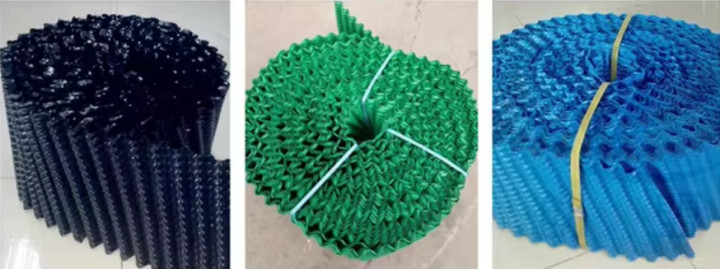

cooling tower fill also known as cooling tower filler, infill, fill packing, or fill media, is essential for efficient cooling tower performance. Made from PVC or PP plain plates, these materials are hot-pressed into various designs to suit different cooling tower needs, especially industrial ones.round cooling tower fill is ideal for round-shaped cooling towers. The counter flow fill packing completely occupies the tower's bottom. It requires no glue or installation; simply loosen the packed fill rolls to achieve the desired spacing.

The different roll diameters are due to the material properties: PP is less flexible and has higher hardness compared to PVC, resulting in larger rolls for the same weight. With advancements in the plastic industry, countercurrent tower drench water plastic packing features "S" shape ladder waves and oblique waves, offering excellent heat dissipation, low ventilation resistance, and durability. These attributes make it suitable for various large, medium, and small cooling towers.

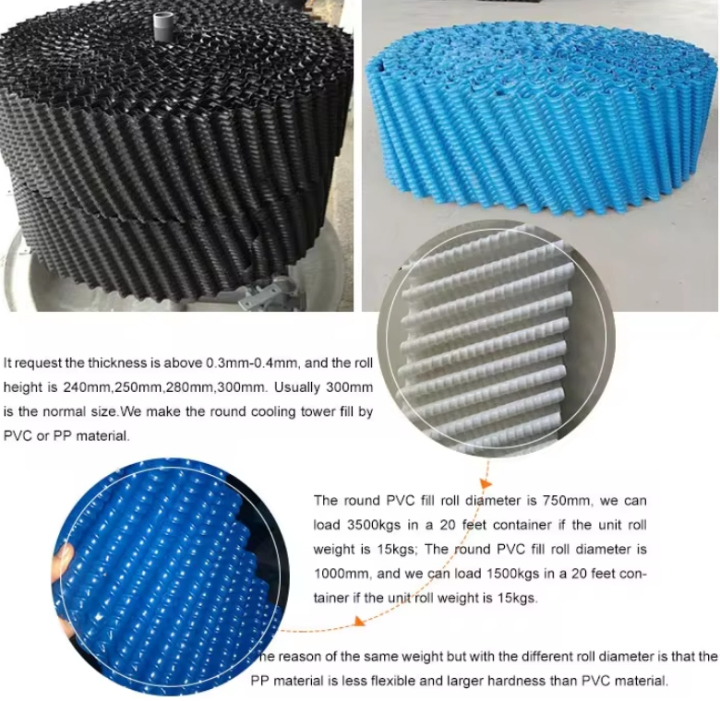

Round Cooling Tower FillsFeatures:

Material: PVC or PP
Thickness Requirement: 0.3mm-0.4mm
Roll Heights: Available in 200mm, 240mm, 250mm, 280mm, 300mm (300mm is the standard size)
PVC Fill Roll: Diameter of 750mm, load capacity of 3500kgs per 20-foot container (each roll weighing 15kgs)
PP Fill Roll: Diameter of 1000mm, load capacity of 1500kgs per 20-foot container (each roll weighing 15kgs)
The different roll diameters are due to the material properties: PP is less flexible and has higher hardness compared to PVC, resulting in larger rolls for the same weight.

Specification:

Applications:

This fill pack is particularly suited for round cooling towers in industrial settings, providing efficient and effective cooling without the need for adhesives or complex installation processes.

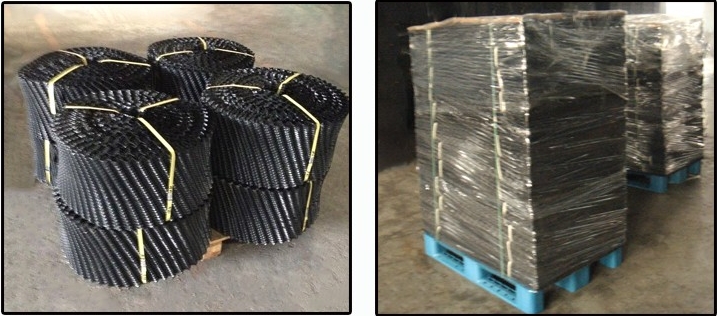

Package:
