Product Description

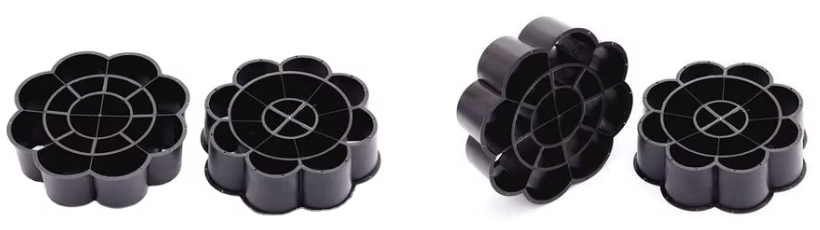

UV Standard SF30 Bio Pac Cascade Trickling Filter Media ( PP HDPE) is engineered to boost the performance of existing trickling filters or to be installed in new systems. Its innovative design, with over 300 mixing and redistribution points per cubic foot, ensures optimal air and water redistribution every 2 inches of media depth, making it perfect for shallow trickling filters.
In addition, Bio-Pac SF30 is extensively used in upflow anaerobic and aerobic submerged bed reactors, providing further benefits by eliminating the need for underdrain supports due to its buoyancy. Its unique structure also functions as a foam breaker in anaerobic.
Manufactured from reprocessed UV-stabilized polypropylene, our SF30 bio-pac ensures long-term durability and is widely utilized in both anaerobic and aerobic submerged attached growth reactors. With minimal installation costs and support for bed depths up to 30 feet, Bio-Pac is a cost-effective and reliable solution.
Key Media Features & Benefits:
- 30 ft²/ft³ surface area
- 95% void ratio
- UV-stabilized polypropylene for long-lasting performance
- Excellent for Biological Oxygen Demand (BOD) reduction and nitrification
- Low minimum wetting rate (150 gpd/ft²)
- Supports bed depths up to 30 feet
- Reduces installation costs
SF30 BioPac Media Specifications
| Size | 90 x 34mm | 180 x 50 mm |
| Void ratio | 90% | 95% |
| Surface area | 140 m2/m3 | 100 m2/m3 |
| Weight (PP/PE) | 85 kg/m3 | 40kg/m3 |
| Number | 2600pcs/m3 | 500pcs/m3 |

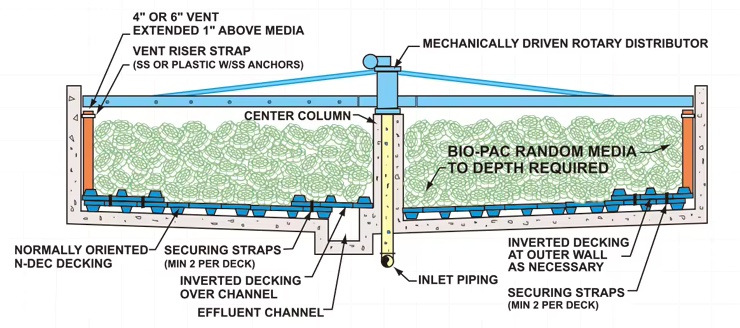

Bio-Pac SF30’s robust design makes it the preferred choice for both new and retrofitted biological wastewater treatment systems.We offer a comprehensive range of Bio-Pac media, designed for efficient use in biological wastewater treatment systems such as trickling filters and aerobic processes. These media are ideal for replacing traditional rock media in existing systems, significantly improving performance.
