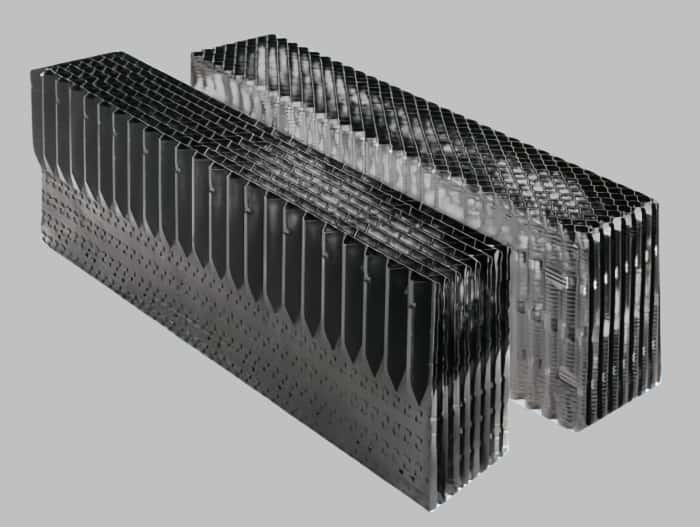

The Vertica Fluted Film Fill for counterflow cooling towers is designed with vertical flow channels and large openings that allow high water velocities to pass through. This design ensures superior thermal performance while also providing an anti-fouling effect. The large openings in the vertical fluted structure reduce the risk of debris accumulation and scaling, ensuring continuous water flow and minimizing the need for maintenance. The unique geometry optimizes water distribution, ensuring effective cooling even in high-flow situations, while enhancing the durability and preventing fouling over time. This makes the AccuPac Vertical-Fluted Film Fills ideal for a wide range of industrial applications where efficient cooling and long-term performance are essential.
Key Features
- Anti-fouling design
- Bonded edges with dedicated bond points for added strength and durability
- Suitable for applications with high levels of suspended solids, such as water from high cycles of concentration, rivers, or seawater
- Exceeds Cooling Technology Institute (CTI) Standard 136
- Available with AccuShield technology and select products feature Mechanical Assembly technology
- High performance: lightweight, high strength, good flame retardancy, corrosion resistance, low ventilation resistance, excellent hydrophilicity, and large contact area
- Suitable temperature range: 65°C to -35°C
- Self-supporting structure with high bearing capacity and variable sheet thickness
- Low pressure drop
- High resistance to erosion

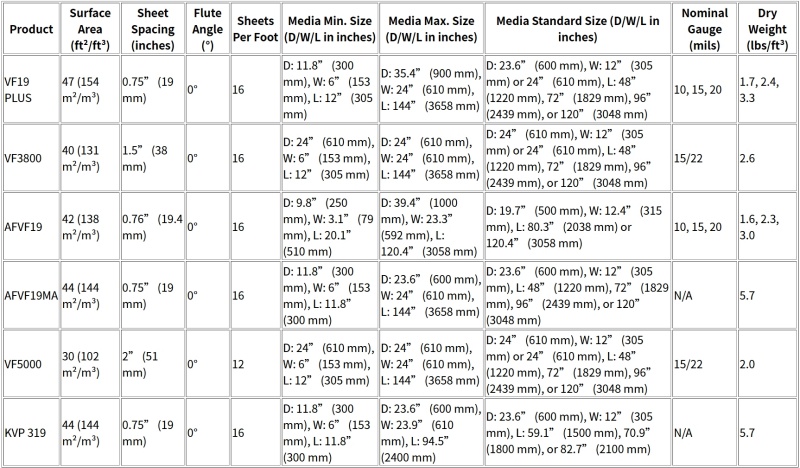

Specifications
Applications
VF19 PLUS
This model is ideal for counterflow towers where total suspended solids (TSS) levels are high. Featuring an engineered microstructure that enhances water distribution and thermal mixing, the VF19 PLUS has been tested and approved by a major U.S. utility in an operating natural draft cooling tower. It is commonly used in industries such as power, refining, chemicals, mining, and food processing.
VF3800
Similar to the VF19 PLUS, the VF3800 is designed for counterflow applications, but with larger flute openings. It removes the microstructure to allow maximum water velocity, making it an excellent choice for high-flow conditions.
AFVF19
The AFVF19 is designed for counterflow cooling towers in utility and industrial applications where surface water is used as makeup water. This includes industries such as power, refining, chemicals, mining, and food processing.
For customized solutions, feel free to contact our factory for tailored designs that meet your specific needs.
