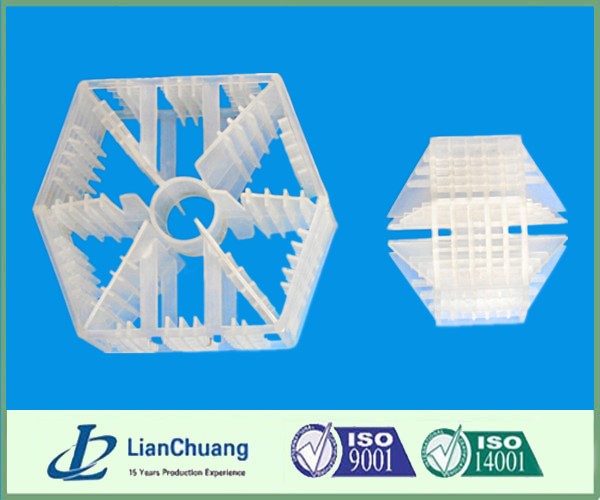

Plastic Lanpac Tower Packing

Time:
2020-12-08 04:05:21
View:
1885

Product Description

Plastic lanpac Tower Packing media is uniquely engineered to provide maximum surface contact between exhaust gases and scrubbing liquid by facilitating continuous formation of droplets throughout the packed media bed.Material Available in a number of thermoplastics, including PE,PP,PVC,CPVC,PVDF.


Specification:

Nominal Sizes

3.5 inch / 90 mm

2.3 inch/ 60 mm

Void Fraction

92.50%

89%

Weight (PP )

4.2lb/ft?/ 67 Kg/m?

6.2 lb/ft? / 99Kg/m?

Geometric Surface Area

144 m?/m?

222 m?/m?

Number/m?

1765/m?

7062/m?

Packing Factor

46/m

69/m


Feature of Lanpac tower packing:
Innovatively Geometric design,:maximum surface contact
High mass transfer efficiency,Low pressure drop
High superficial velocity
Large void fraction,Low fan's energy consumption
Low circulating water & pump energy consumption


Lanpac packing is the best tower packing for Application on:
· Air Strippers
· Degasification
· High Load Scrubbers
· Aeration for H2S Removal
· Vacuum Deaeration
· Decarbonators for Corrosion Control
