Plastic Tellerette Rosette Ring

Time:
2020-12-06 05:33:29
View:
2254

Product Description

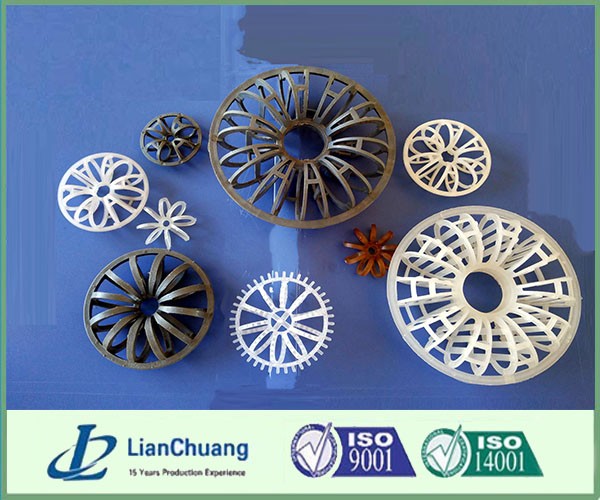

The plastic tellerette rosette ring is named after Tell A J who is the designer of this ring. Plastic tellerette rosette ring is also called teller ring or rosette ring. Sino-Chepack’s plastic tellerette rosette rings can be widely applied in refining and washing tower for water treatment, Heat transfering, absorption, liquid extraction etc. And we could supply different materials such as polyethlene(PE), polypropylene(PP), reinforced polypropylene(RPP), polyvinyl chloride(PVC), chlorinated polyvinyl chloride(CPVC) and polyvinylidene fluoride(PVDF) based on different application requirements.

PP Tellerrette Rosette ring specifications:

Specification

Specific area

Void space

No.elements

Bulk density

inch

mm

m2/m3

%

Pieces/m?

Kg/m?

1″

25×9×(1.5×2)

195

0.82

170000

90

2″

47×19×(3×3)

185

0.88

32500

111

2″

51×19×(3×3)

180

0.89

25000

62.5

3″

73×28×(3×4)

127

0.89

8000

52

4″

95×37×(3×6)

94

0.9

3900

88

6″

145×48×(3×6)

65

0.95

1100

47

 (Polypropylene material for reference)

Note:

1. Material of Plastic Floating Ball: Polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chlorinated polyvinyl chloride (CPVC), polyvinylidene chloride (PVDF)

2. We can produce special size for customer’s own request

Our advantage:

1.More than 10years manufacturing exper experience.
2.ISO9001:2008 certification available.
3.Reasonale price and good service.
4.Free Sample is available, shipping and taxes paid by buyer.
