Product Description

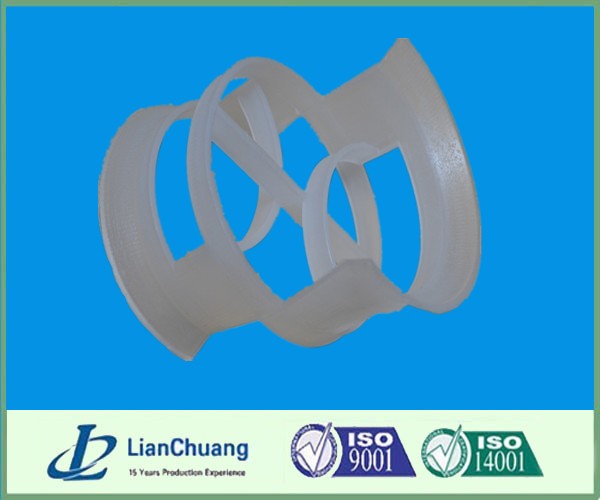

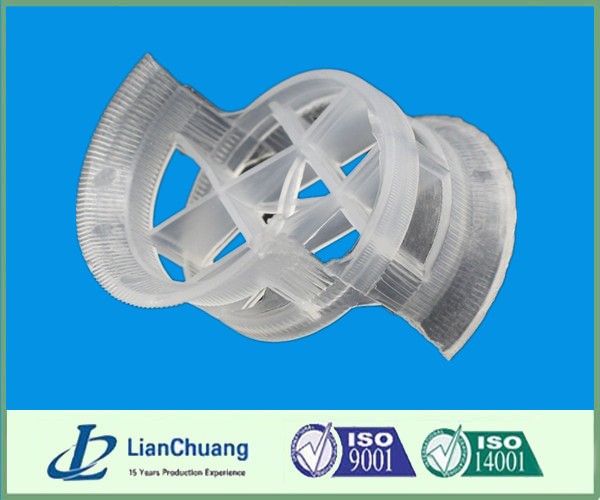

plastic conjugate rings Packing is one random packing developed on the basis of Cascade Ring. The Plastic Conjugate Rings combine advantage of both ring and saddle random packing. Plastic Conjugate Rings have features such as large void space, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on. Like other plastic random packings, it jas heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chlorinated polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF). Plastic Conjugate Rings can be widely applied for distillation, gas absorption, deabsorption system.
Technical Data of Plastic Conjugate Rings
Specifications | D*H*T | Surface area | Void space | Number per | Bulk density | Packing factor |
(mm) | (mm) | (m?/m?) | (%) | m? | (kg/m?) | (m-1) |
25 | 25*17.5*1.0 | 185 | 95 | 74000 | 96 | 216 |
38 | 38*19*1.2 | 116 | 96 | 16000 | 68 | 131 |
50 | 50*25*1.5 | 85 | 96 | 9000 | 83 | 97 |
76 | 76*38*2.6 | 81 | 95 | 3980 | 84 | 94.5 |
100 | 100*50*3.0 | 76 | 94.1 | 1800 | 45 | 101.1 |
Properties of Plastic Conjugate Rings Material:
Performance / Material | PE | PP | RPP | PVC | CPVC | PVDF |
Density (kg/m3) | 0.94-0.96 | 0.89-0.91 | 0.93-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 |
Operation Temp.(Degree C) | 90 | >100 | >120 | >60 | >90 | >150 |
Chemical corrosion resistance | Good | Good | Good | Good | Good | Good |
Compression Strength(Mpa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 |
Our advantage:
1.More than 10years manufacturing exper experience.
2.ISO9001:2008 certification available.
3.Reasonale price and good service.
4.Free Sample is available, shipping and taxes paid by buyer.
