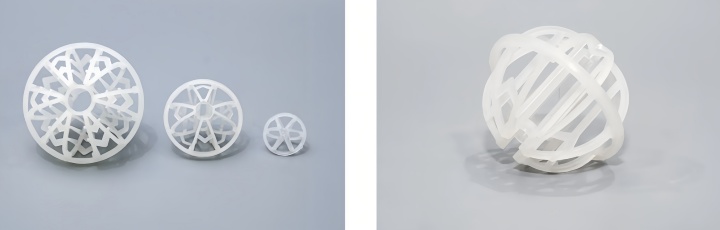

Plastic Tri Packs Random Packing Ball ( PP, PE, CPVC, PVDF )

Product Description

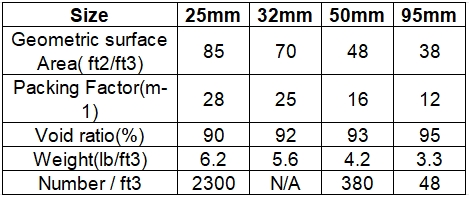

Plastic Tri Packs Random Packing Ball comes in four primary diameters: 25mm, 32mm, 50mm, and 95mm. Its design features a large void space, significantly surpassing similar packing materials, and achieves up to a 90% reduction in pressure drop. This innovative packing material offers a high active surface area, ensuring the entire surface remains wetted during column operations. Its efficiency has led to substantial cost savings across hundreds of packed tower operations.

Engineered with precision, Plastic tri packs maximizes surface contact between exhaust gases and scrubbing liquids by promoting continuous droplet formation throughout the packed bed. The specialized shape ensures uniform liquid distribution across the tower bed, reducing liquid channeling and wasteful wall flow. Additionally, its design prevents clogging and puddling due to the absence of flat surfaces, minute openings, corners, or valleys. The result is exceptional scrubbing efficiency with minimized packing depth requirements.

Enhanced Operational Benefits

Unlike traditional packing media, Plastic Tri Packs eliminates dry spots and compression interlock, common issues that lead to inefficient liquid and air flow. Its design optimizes the surface-to-open-area ratio, ensuring effective mass transfer and reducing pressure drops. This minimizes energy consumption and lowers operational costs while delivering high-performance outcomes.

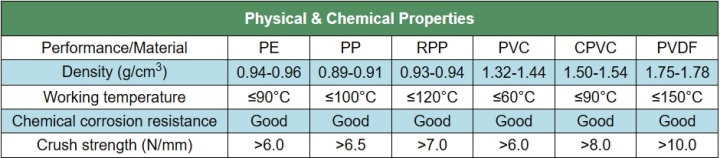

Material Composition

Plastic Tri Packs is available in durable, corrosion-resistant materials, including: Polyethylene (PE), Polypropylene (PP), Reinforced Polypropylene (RPP), Polyvinyl Chloride (PVC), Chlorinated Polyvinyl Chloride (CPVC), Polyvinylidene Fluoride (PVDF)
