Product Description

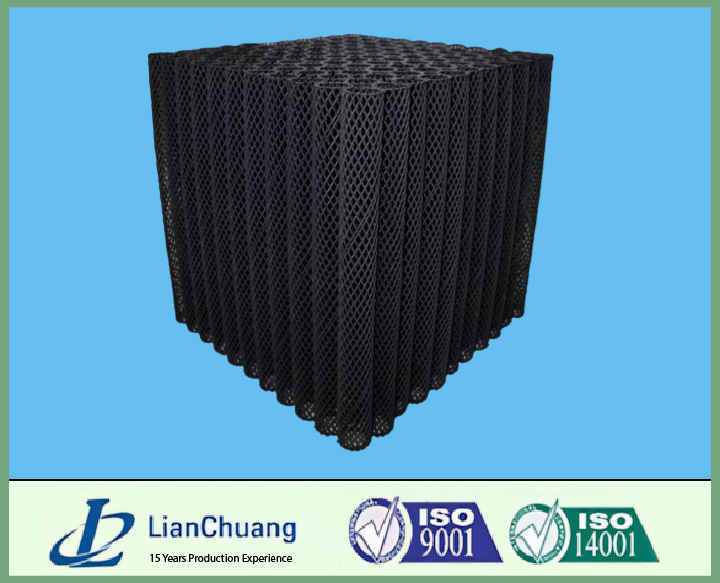

Bio-blok Biological Filtration, Bio Block Filter Media is a highly efficient and specially designed filtration material for biological treatment in domestic sewage, industrial wastewater, and aquaculture systems. This media is made from net tubes that are welded together to form a square block. This innovative design offers several benefits, including ease of maintenance and resistance to clogging. With a flow rate of 7500 to 10000 liters per hour per square meter of surface area, the Bio Block filter media consistently delivers superior performance. Over time, it becomes even more effective as bacteria create a filtering web between the net elements to capture finer particles. Its easy-to-clean feature, without needing removal, makes it an ideal choice for various pond types.
Key Features of Bio Block Filter Media
Rapid Biofilm Formation: Promotes the quick development of a biofilm on the carrier.
Superior Decarburization and Ammonia Removal: Offers excellent capacity for carbon and ammonia nitrogen reduction.
High Shock Load Tolerance: Demonstrates outstanding performance under sudden load variations.
Versatile Engineering Applications: Easily adaptable for various engineering needs.
Simple Operation and Maintenance: Requires minimal effort to maintain and operate.
Extended Service Life: Crafted from 100% virgin HDPE material for durability and long-lasting use.
Effective Deoxidation and Phosphorus Removal: Optimized for efficient deoxidation and phosphorus reduction.
Advantages of Bio Block Filter Media
Built from robust HDPE, providing chemical and corrosion resistance.
A unique design with a high surface area that enhances biofilm development.
Free from PVC and glue, ensuring environmental friendliness.
UV-resistant, lightweight, and modular design for easy handling.
Sturdy enough to support walking or working on without loss of integrity.
Easy to install, suitable for any bio-reactor tower or tank size/shape.
Self-cleaning, self-supporting, and clog-resistant.
Resistant to biological and chemical degradation, ensuring reliable operation.
Long-lasting, with a lifespan exceeding 20 years.
Bio-Blok Specifications
Dia of tubes | Module Specification | Specific surface | Packing Number |
50mm | 50*50*50cm | 200 m2/m3 | 10*10（100 tubes） |
55mm | 55*55*50cm | 150 m2/m3 | 10*10（100 tubes） |
70mm | 56*56*50cm | 100 m2/m3 | 8*8(64 tubes) |
36mm | 54*54*50cm | 300 m2/m3 | 15*15(225 tubes) |
The Bio-Blok can be customized by welding together varying numbers of single tubes, such as 25 tubes (5x5) or 36 tubes (6x6), or other configurations as needed.
The length of the tubes can be tailored to specific requirements.
Four standard tube sizes are available, with further customization possible through the creation of specialized tooling based on customer drawings.
