Product Description

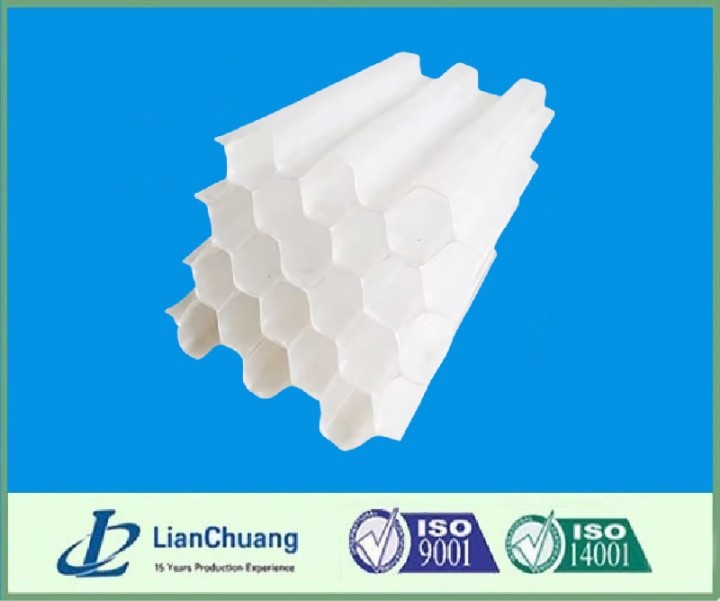

Tube settler, also known as lamella clarifier media, play a crucial role in wastewater treatment by efficiently removing solids. These structures consist of multiple tubular channels sloped at an angle of 60° and positioned adjacent to each other. This unique configuration significantly increases the effective settling area, enhancing the sedimentation process. Our tube settlers are crafted from 100% virgin PP (polypropylene) or PVC (polyvinyl chloride), ensuring durability and chemical resistance. Each tube settler features a hexagonal shape with a 60-degree angle design, incorporating multiple tubular channels that collectively create a large settling area. This design facilitates particle settling at a depth significantly shallower than traditional clarifiers.
As water treatment is essential for ensuring clean and safe water across various applications. In the domain of water clarification, tube settlers have revolutionized the process by maximizing settling efficiency within a compact footprint. Unlike conventional clarifiers, tube settlers achieve effective particle settling with a shallower depth, reducing settling times. They capture fine floc that might otherwise escape below the clarification zone, while allowing larger floc to settle more effectively at the tank bottom. The channels of tube settlers gather solids into compact masses, promoting their downward movement along the tube channels.
Tube settler media is highly versatile, making it ideal for various clarifiers and sand removal applications. It is widely used in water supply and drainage projects due to its broad applicability, high efficiency, and compact footprint. Tube settler media effectively removes sand from water intake, industrial processes, and drinking water treatment, as well as facilitates oil-water separation.

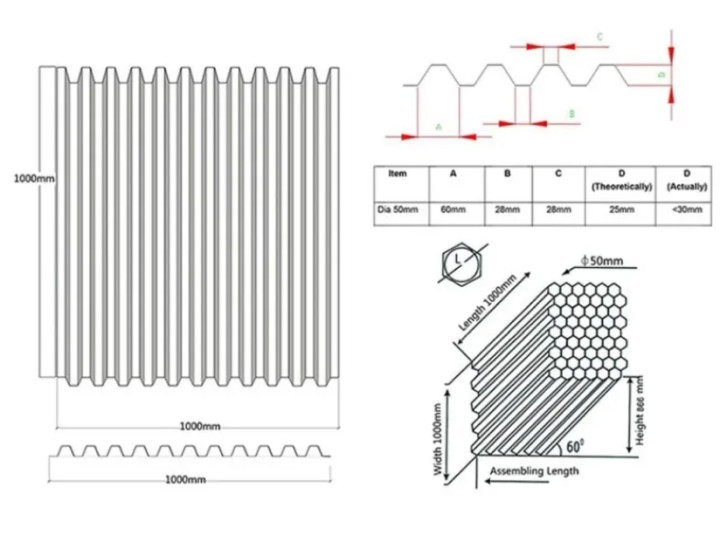

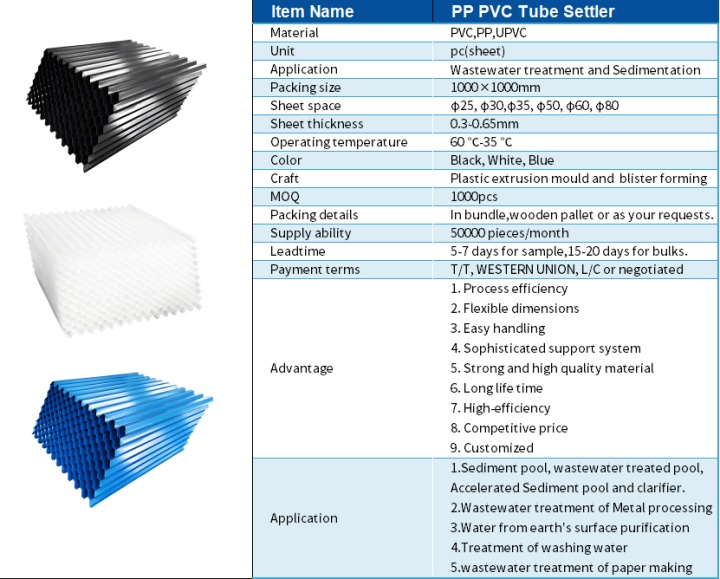

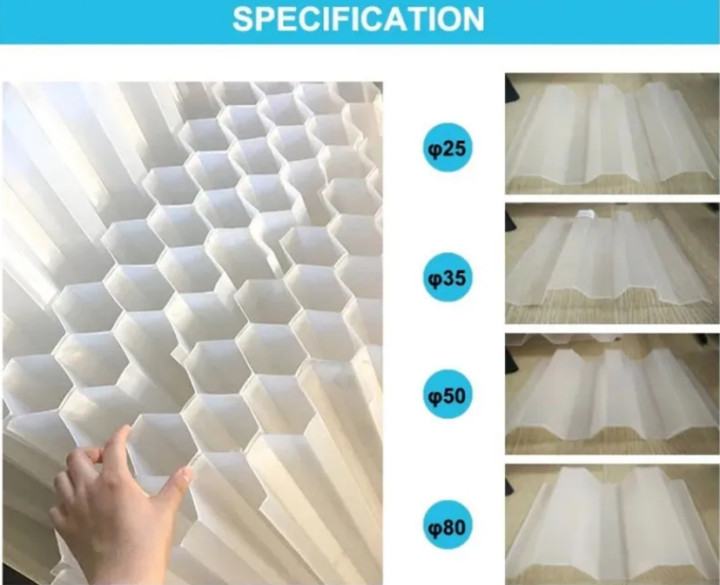

Tube Settler Specification:
Size | Thickness | Quantity | Weight | Specific surface Area(㎡/m³) |
(mm) | (mm) | (pcs/㎡） | (kgs/㎡） | |
φ25 | 0.4 | 62 | 30 | 139 |
0.45 | 62 | 35 | 139 | |
φ35 | 0.4 | 42 | 22 | 109 |
0.45 | 42 | 25 | 109 | |
0.5 | 42 | 28 | 109 | |
φ50 | 0.4 | 30 | 16.5-17.0 | 87 |
0.45 | 30 | 17.5-18.0 | 87 | |
0.5 | 30 | 18.5-19.0 | 87 | |
0.6 | 30 | 22 | 87 | |
φ80 | 0.7 | 19 | 19.5 | 50 |
0.8 | 19 | 22 | 50 | |
Benefits of Tube Settlers:
Enhanced Process Efficiency: By increasing the sedimentation area through the multiplication of channels in a chevron pattern and adjusting spacing and slope, our system optimizes sedimentation efficiency.
Versatile Dimensional Adaptability: Our system can accommodate various shapes, inclinations, and configurations, including round settlers, and allows for customized cutouts as needed.
Simplified Handling: The straightforward on-site assembly method ensures cost-effective and secure delivery worldwide.
Advanced Support Infrastructure: Utilizing stainless steel and specially shaped glass fiber reinforced plastic beams, our support system minimizes turbulence and prevents sludge buildup, enhancing operational reliability.
Durable and High-Quality Materials: We utilize high-stability PP materials approved for stringent potable water standards, ensuring longevity and ease of maintenance for our modules.

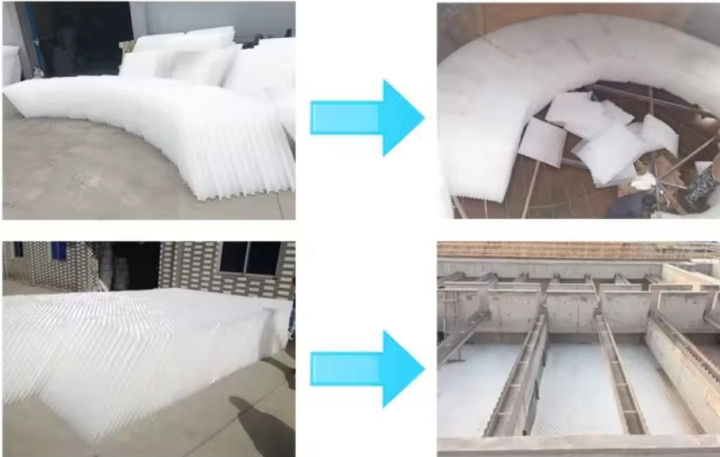

Typical Applications of Tube Settlers :
Sugar refineries
Pharmaceutical plants
Distilleries
Dairy processing plants
Chemical and petroleum refineries
Sediment pool
waste water treated pool
Accelerated Sediment pool and clarifier
Metal processing waste water treatment
Treatment of washing water
Paper industry waste water treatment

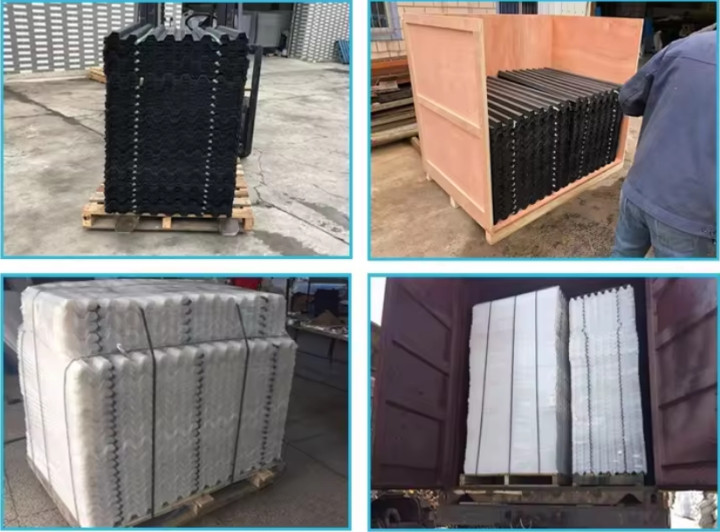

Packages :
Packaging options include pallets, plastic woven bags, carton boxes, or custom packaging based on your preferences.
Why Choose Our Tube Settlers :
Quality Commitment: We prioritize excellent quality with stringent control measures enforced by our dedicated QC team.
Capacity Expansion: Continuously investing in new equipment to meet evolving market demands and client production requirements.
Experienced Team: With over 15 years of specialization in Tube Settlers, our professional export team provides comprehensive customer service.
Efficient Support: Access our 24/7 online service for prompt resolution of inquiries via Email, Trademanager, WhatsApp, and telephone. We offer factory-direct pricing quotes within 24 hours.
Customization: We tailor PVC and PP tube settlers to meet specific size and shape requirements as per customer specifications.
Flexible Payment Options: Choose from a variety of payment methods for added convenience.
Choose us for our unwavering commitment to quality, capacity for growth, experienced team, efficient service, customization capabilities, and flexible payment options.
