Product Description
The VC25 Counterflow Splash Trickle Fill Grid is an advanced cooling tower solution designed to maximize thermal performance while minimizing pressure loss. This cooling tower fill is specifically engineered for high efficiency, low maintenance, and exceptional cooling capabilities. Whether handling clean or polluted water, the VC25 Counterflow Splash Trickle Fill Grid offers a reliable and efficient heat exchange solution, ideal for industrial and commercial applications.
High Performance with Low Pressure Loss
The installation of VC25 Counterflow Splash Trickle Fill Grid offers a completely new approach to film fill installations. It is used only where it truly makes sense—non-water-scarce areas. This design features water flowing around both sides of the fill, combined with a droplet cleansing effect to achieve the highest cooling interface.
By forming a water film, the VC25 Counterflow cooling tower fill delivers high thermal performance with minimal pressure loss. The thickness of the fill (1.5-2mm) is much greater than that of traditional cooling tower fill inserts, enhancing its heat dissipation capacity. In addition to its thermal efficiency, the VC25 Counterflow Splash Trickle Fill Grid ensures that the cooling tower operates effectively, even in conditions that require low pressure loss, making it a versatile option for diverse cooling needs.
Environmental Compatibility and Easy Installation
Made from solvent-free polypropylene (PP), the VC25 Counterflow Splash Trickle Fill Grid is environmentally friendly and aligns with sustainable material requirements. The fill features innovative assembly technology that allows for simple and fast installation. It is mechanically assembled, eliminating the need for adhesives, which simplifies the process while maintaining structural integrity.
Furthermore, the VC25 Counterflow Splash Trickle Fill Grid can be supplied with flame-retardant properties to meet local fire protection requirements. This ensures that the product complies with safety standards, providing both performance and safety assurances for your cooling tower.
Adaptability for Various Water Qualities and High Durability

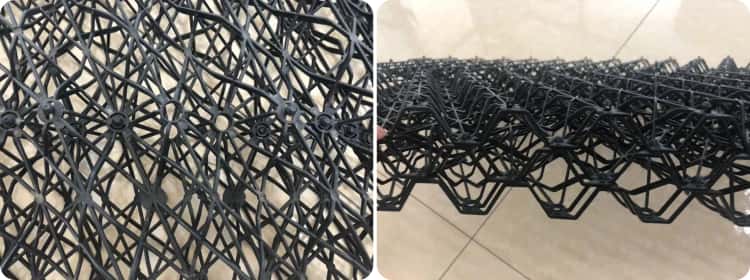

The VC25 Counterflow Splash Trickle Fill Grid is designed to handle challenging conditions, including exposure to contaminated or polluted water. Its open vertical-offset grid structure offers a free volume of over 97%, making it particularly suitable for environments with highly polluted or dirty water. This robust design helps to prevent fouling, reducing maintenance requirements and ensuring long-term reliability.
Additionally, the VC25 Counterflow Splash Trickle Fill Grid is ideal for use on weather-protected construction sites, allowing for quick and efficient deployment in various settings. Its high durability and resistance to fouling make it the preferred choice for industries relying on cooling towers for thermal management.
Specifications of the VC25 Counterflow Splash Trickle Fill Grid
- Material: Polypropylene (PP), optional flame-retardant
- Standard Dimensions: L: 910mm x W: 610mm x H: 450mm (custom sizes available)
- Sheet Pitch: 25mm
- Free Volume: 97%
- Effective Surface Area: 100m²/m³
- Channel Structure: Vertical Offset
- Operating Temperature: Up to 75°C (constant), up to 80°C (short-term)
- TSS Content: 1000/500 ppm (good biological control)
- Flammability Rating: ASTM E 84, UL 94, DIN 4102-B2, DIN 4102-B1, M2
- Weight: 26 kg/m³
- Mechanical Assembly: No adhesives required
In conclusion, the VC25 Counterflow Splash Trickle Fill Grid offers the perfect combination of performance, environmental compatibility, and easy installation. It is the top choice for cooling tower systems and will optimize your heat management system.
If you are looking for a reliable and efficient cooling tower fill solution, the VC25 Counterflow Splash Trickle Fill Grid is the perfect option to enhance your thermal management systems. Invest in the best for your cooling tower and experience improved cooling efficiency with the VC25 Counterflow Splash Trickle Fill Grid.
