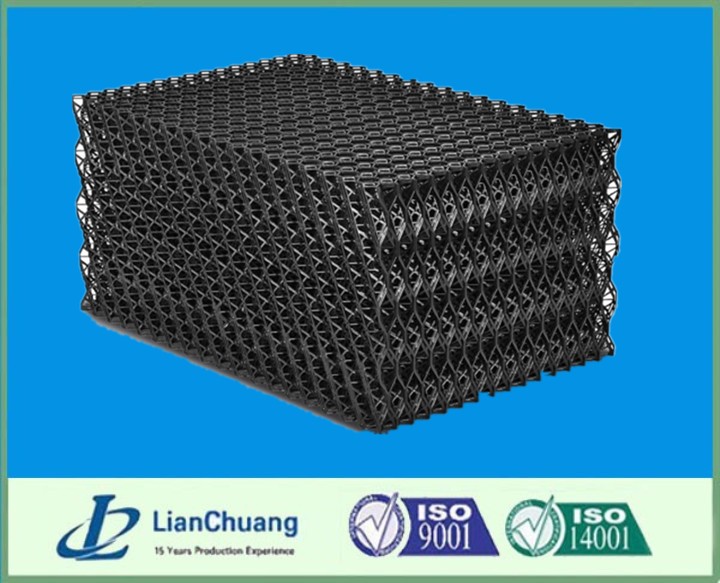

PVC PP Net Splash Fills for Cooling Tower

Time:
2024-09-27 15:12:11
View:
277

Product Description

PVC PP Net Splash Fills for Cooling Tower are engineered for both counterflow and crossflow cooling towers, delivering high thermal performance in conditions where poor water quality restricts the use of film fills. Their open design resists fouling, making them ideal for applications with water containing high levels of suspended solids.


Some kind splash filter such as PP Net filter is particularly applied for animal husbandry deodorization, featuring easy cleaning and installation. With a specific surface area of 125 m²/m³, a gap rate of 97%, and minimal wind resistance, it offers excellent anti-clogging capabilities and requires no maintenance during operation. The filter measures 900 mm in length and 450 mm in width. At a wind speed of 1.5 m/s, the pressure drop is less than 15 Pa, and it has a service life of over 20 years. Currently, this PP net filter is widely used in European countries for animal husbandry deodorization.


The Net fill (non-glued assembly fill) is designed for medium to heavily polluted cooling water, focusing on high stability and easy, economical installation. These fills are built from mechanically joint grids and are easy to clean, offering high performance with an optimized pressure drop.


Features:

1.Unique connection method ensures the assembled filler block is firm and reliable.
2.Large void ratio, high heat transfer coefficient
3.High temperature resistance and corrosion resistance
4.Quickly forming film, not prone to scaling
5.Three-dimensional flow, uniform water distribution

Technical Information:

1.Material: UV resistant PP
2.Color: Anthracite
3.Maximum Temperature: 75°C
4.Tolerance: ±2%
5.Void Ratio: 97%
6.Length of Module: Up to 3000 mm


Advantages:

1.Long Service Life: Made from raw materials by injection molding, solid and durable, with a service life of up to 10 years.
2.Clean without Deformation: Surface dust can be cleaned with a high-pressure spray at any time to prevent deformation.
3.Economical and Environmentally Friendly: Free of irritating phenol, green, environmentally friendly, economical, and durable.
4.Good Deodorization Effect: Provides a noticeable deodorization effect for waste gas in breeding farms.
5.Corrosion Resistance: Resistant to acid and alkali corrosion, water splash, bird pecking, rat bites, and acid and alkali damage.
