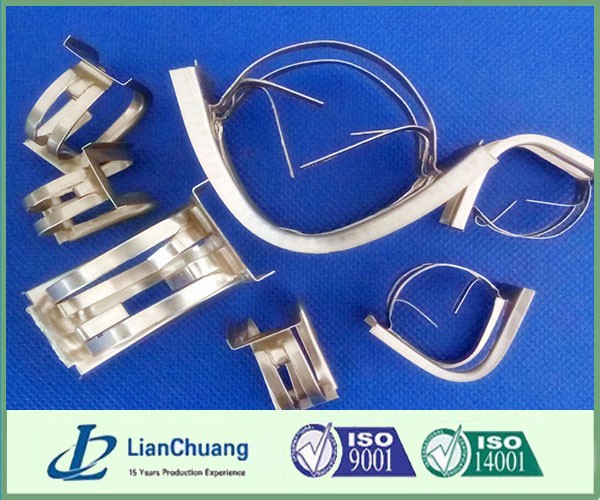

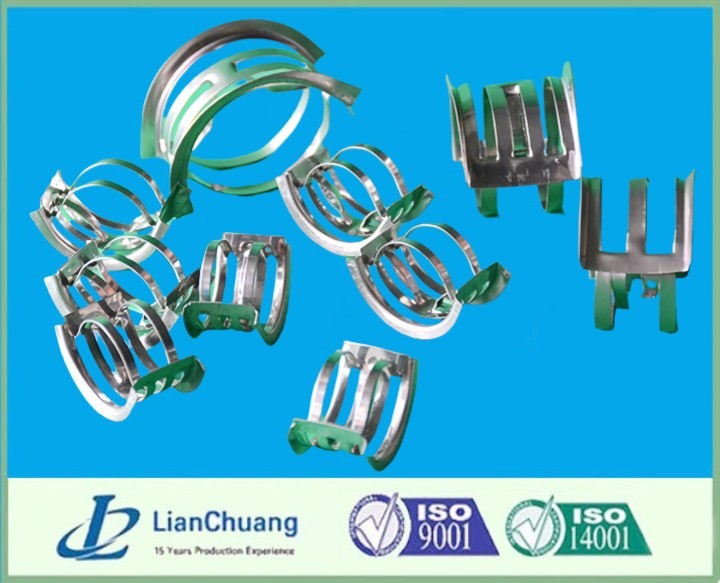

Product Description
Metal Intalox Saddle Packing Ring is one kind of high performance random packing. Metal stainless intalox saddles always applied in mass transfer towers both small and large diameter. metal intalox saddles is frequently used in deep vacuum towers where low pressure drop is crucial and also high pressure towers where capacity significantly exceeds conventional trays. Metal intalox saddles,?stainless steel saddles is available in various sizes, which give different combinations of efficiency and pressure drop.

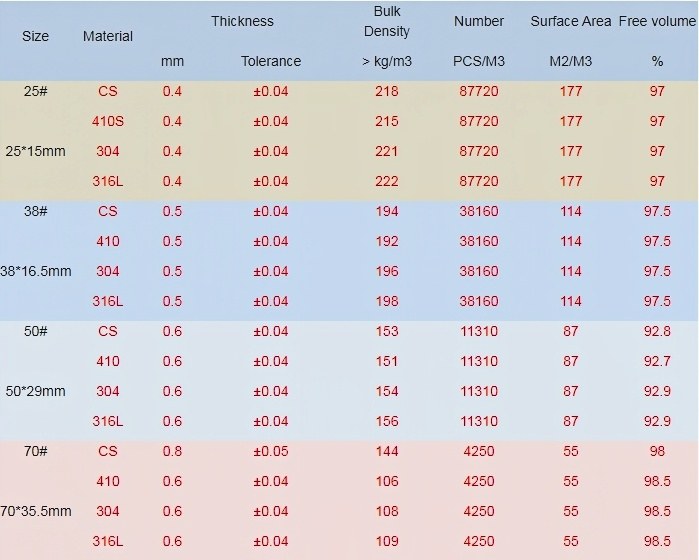

Technical Data of Intalox Saddles:
Size | Material | Thickness | Bulk | Number | Surface Area | Free volume | |
mm | Tolerance | > kg/m3 | PCS/M3 | M2/M3 | % | ||
25# | CS | 0.4 | ±0.04 | 218 | 87720 | 177 | 97 |
25*15mm | 410S | 0.4 | ±0.04 | 215 | 87720 | 177 | 97 |
304 | 0.4 | ±0.04 | 221 | 87720 | 177 | 97 | |
316L | 0.4 | ±0.04 | 222 | 87720 | 177 | 97 | |
38# | CS | 0.5 | ±0.04 | 194 | 38160 | 114 | 97.5 |
38*16.5mm | 410 | 0.5 | ±0.04 | 192 | 38160 | 114 | 97.5 |
304 | 0.5 | ±0.04 | 196 | 38160 | 114 | 97.5 | |
316L | 0.5 | ±0.04 | 198 | 38160 | 114 | 97.5 | |
50# | CS | 0.6 | ±0.04 | 153 | 11310 | 87 | 92.8 |
50*29mm | 410 | 0.6 | ±0.04 | 151 | 11310 | 87 | 92.7 |
304 | 0.6 | ±0.04 | 154 | 11310 | 87 | 92.9 | |
316L | 0.6 | ±0.04 | 156 | 11310 | 87 | 92.9 | |
70# | CS | 0.8 | ±0.05 | 144 | 4250 | 55 | 98 |
70*35.5mm | 410 | 0.6 | ±0.04 | 106 | 4250 | 55 | 98.5 |
304 | 0.6 | ±0.04 | 108 | 4250 | 55 | 98.5 | |
316L | 0.6 | ±0.04 | 109 | 4250 | 55 | 98.5 | |
Features:
1. Low pressure drop;
2. High free volume, large void space;
3. Top mass transfer performance
4. Excellent corrosion and heat resistance
5. Easy to install or remove. Recyclable
6. High floating point;high separation efficiency.
Application:
? Transfer towers both small and large diameter
? Deep vacuum towers where low pressure drop is crucial and also high pressure towers where capacity significantly exceeds conventional trays
? Distillation, absorption etc
? High pressure towers
Material of metal intalox saddles :
Carbon steel, stainless stee l304, 304l, 410 , 316 , 316lLor Aluminum alloy, etc.
Our advantage:
1.More than 10years manufacturing exper experience.
2.ISO9001:2008 certification available.
3.Reasonale price and good service.
4.Free Sample is available, shipping and taxes paid by buyer.
